IPD – GGI I/O Interface Card – GGI 560-1 B5 – Opto-Isolated Digital I/O Interface Controller Card-Used – 1

IPD GGI 560-1 B5 Industrial I/O Interface Card Eurocard 32 Optocouplers

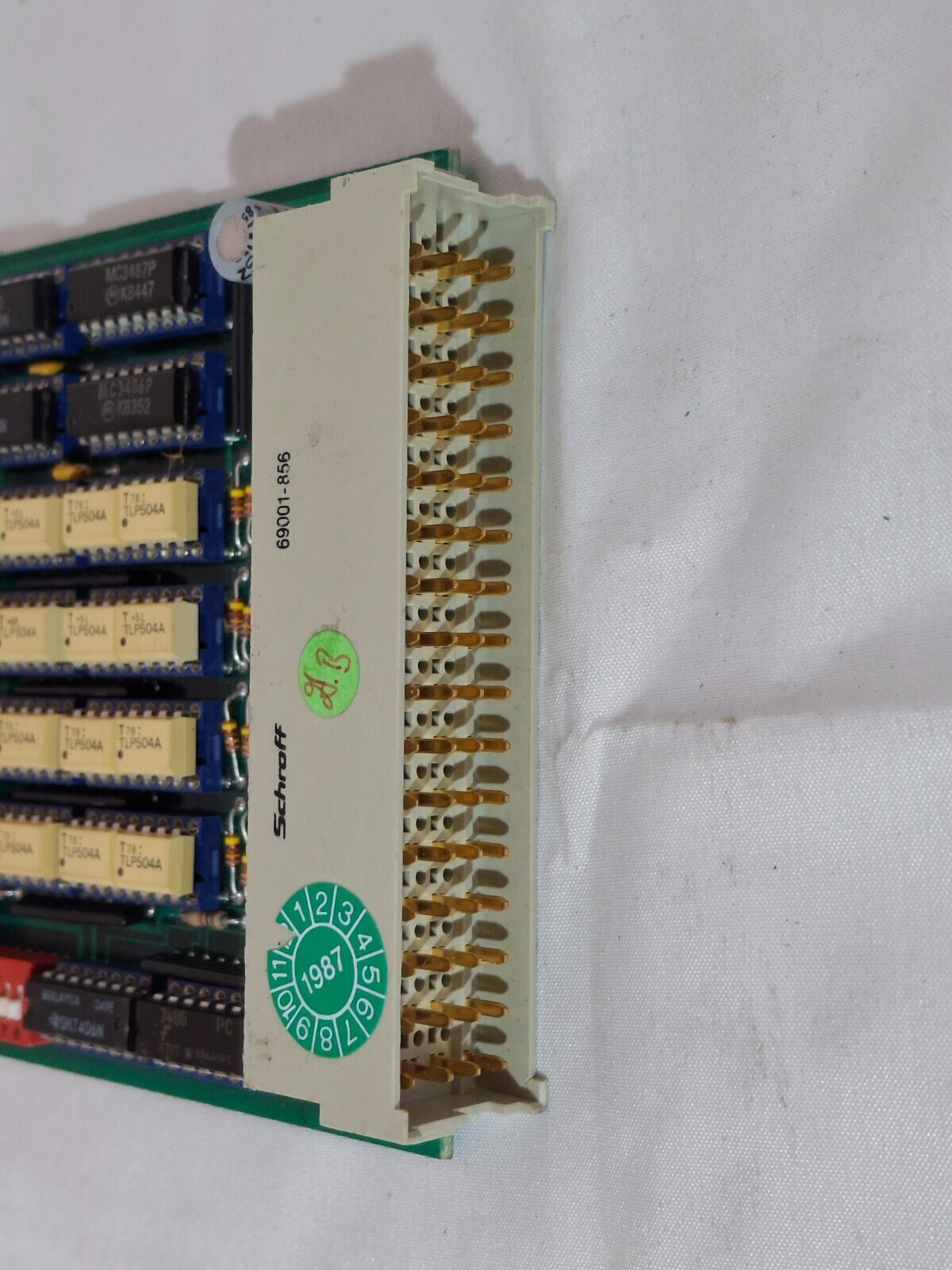

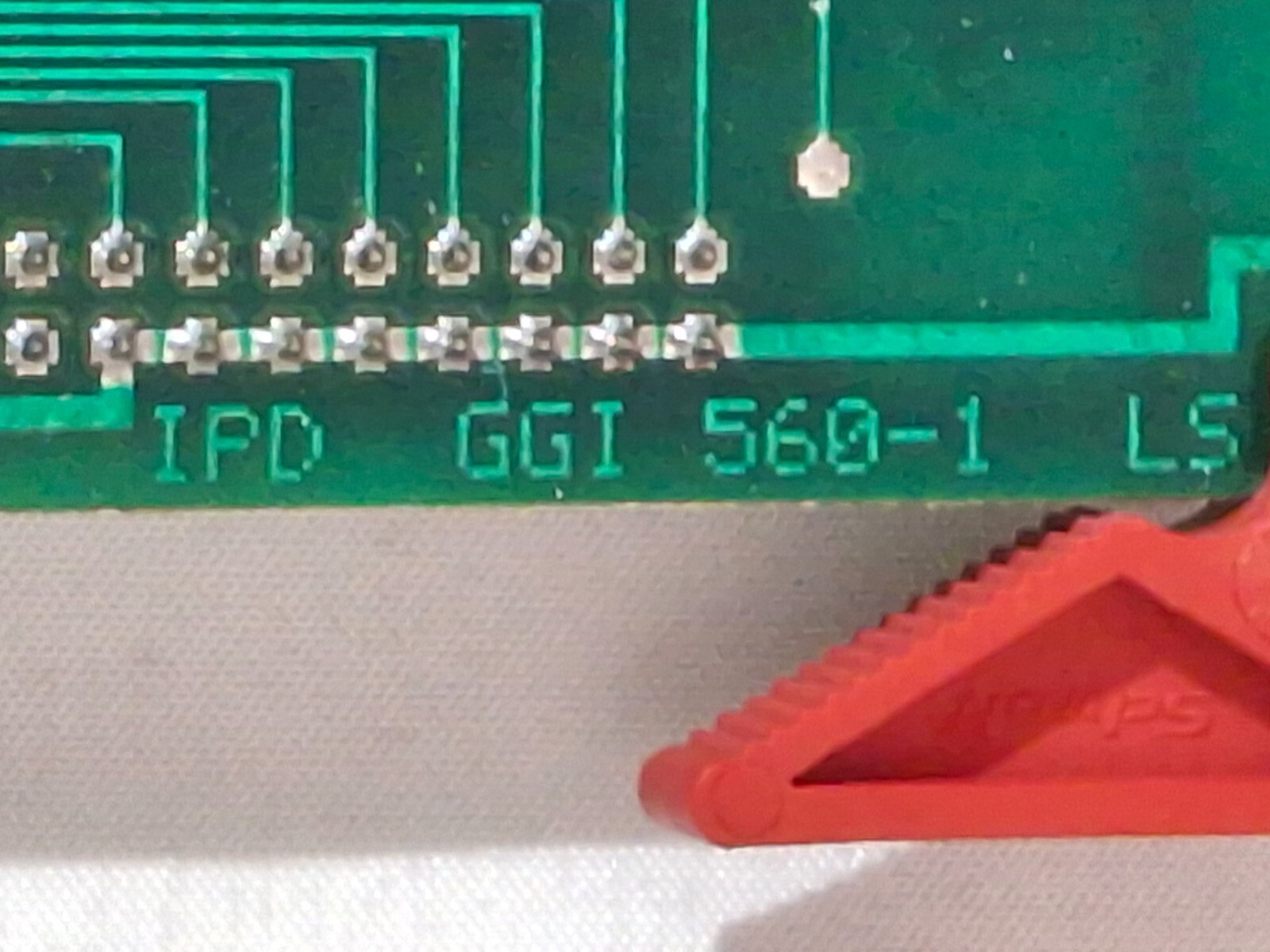

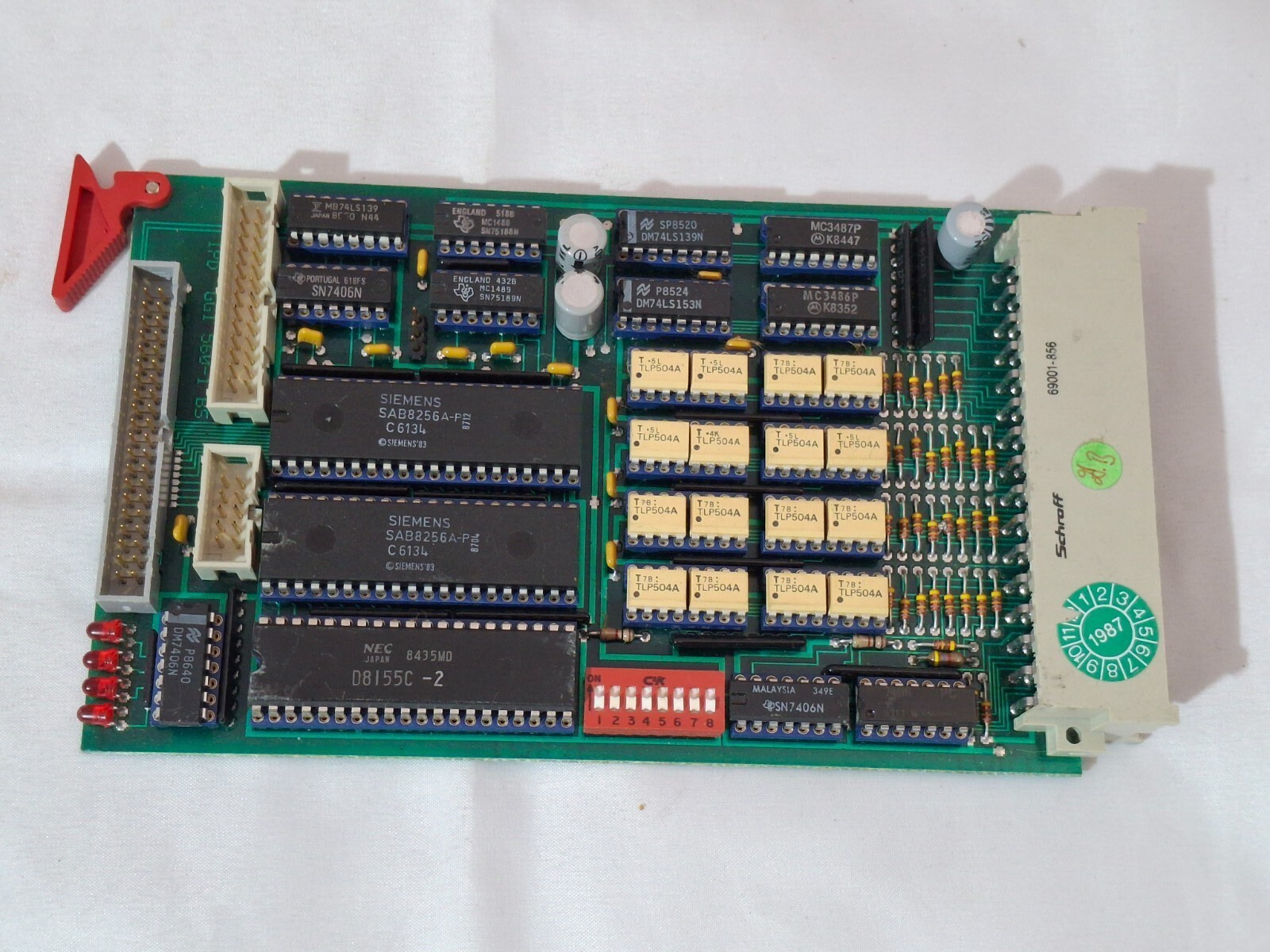

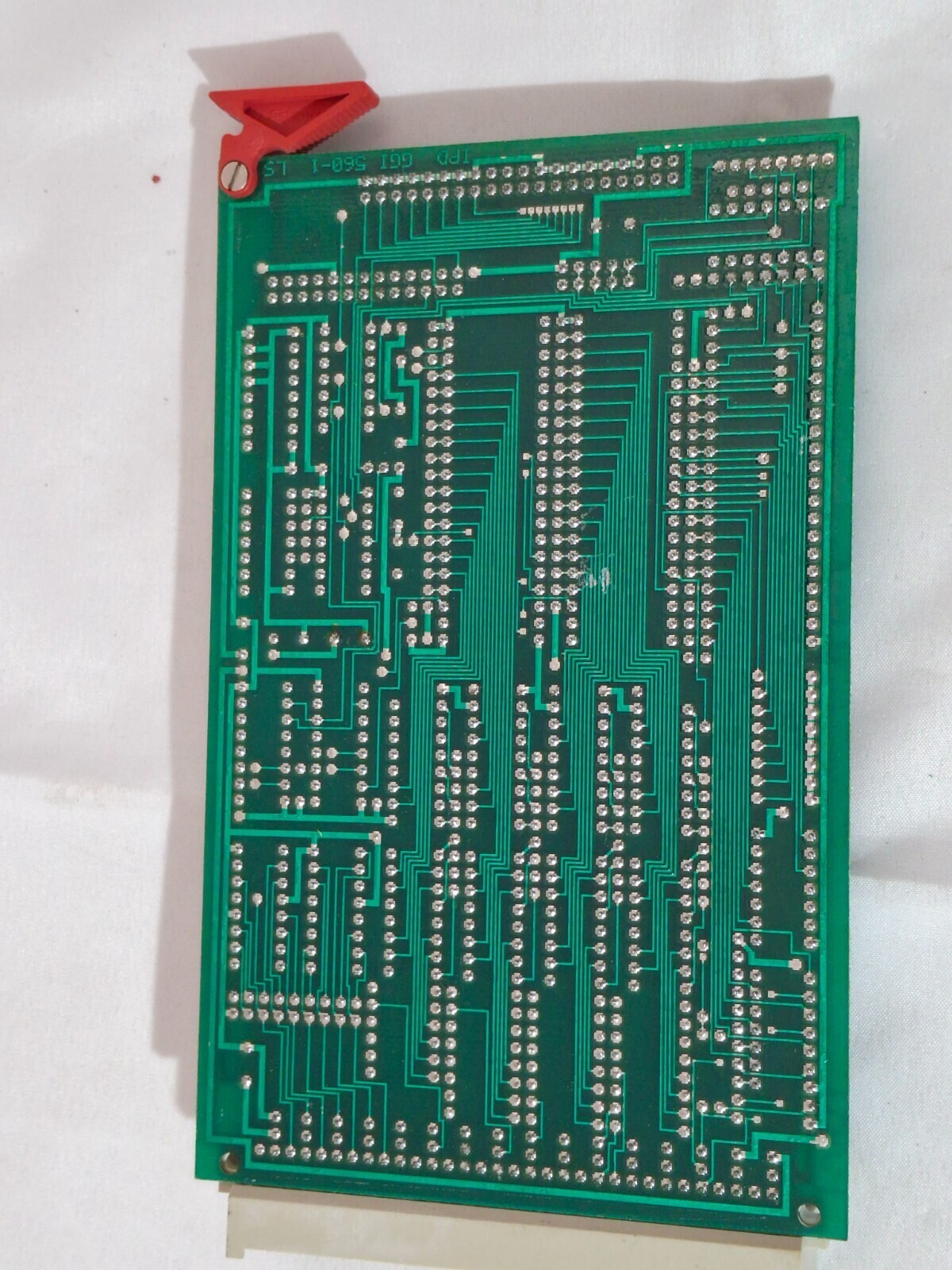

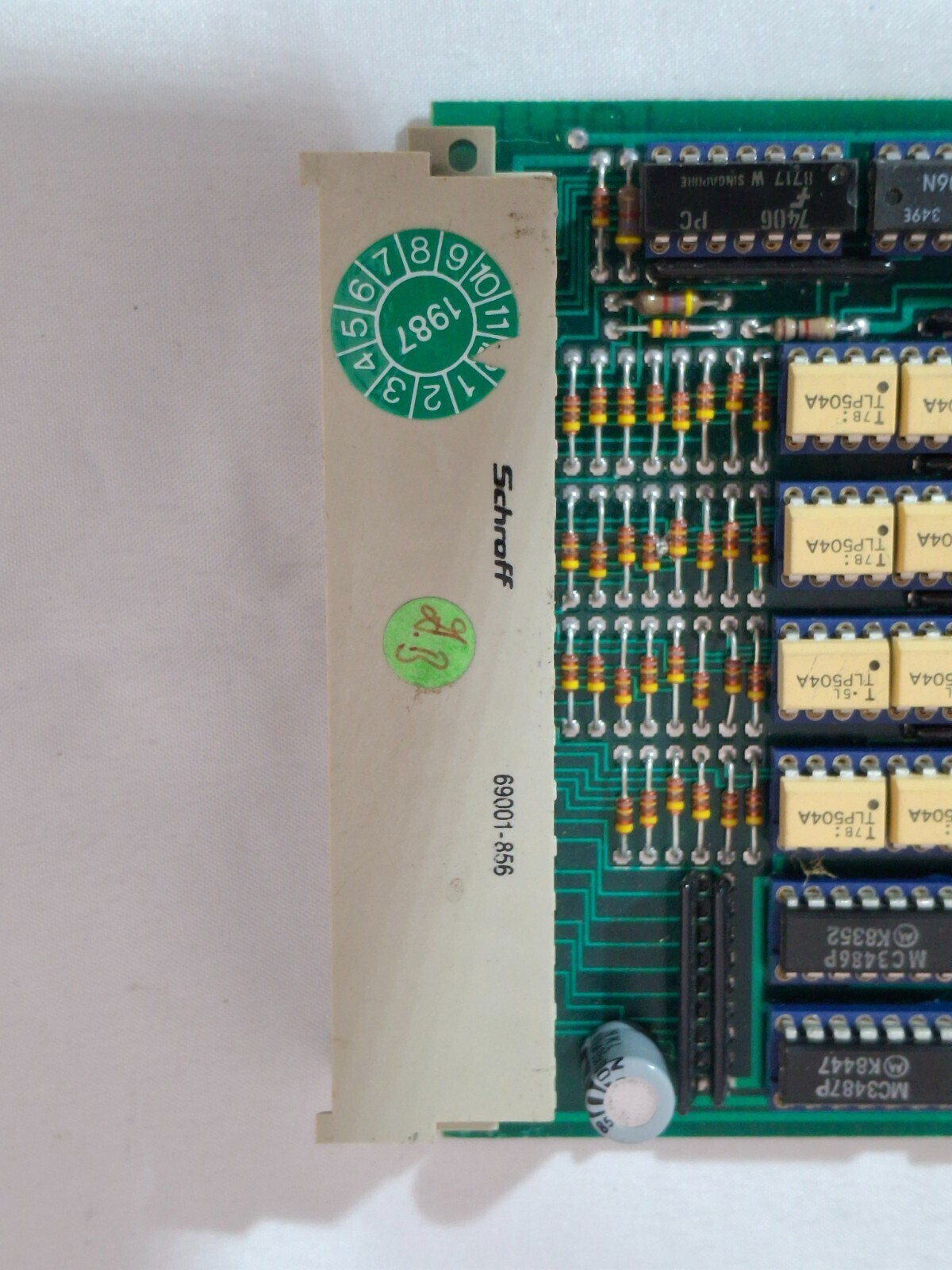

Legacy IPD industrial I/O interface board marked ‘IPD GGI 560-1 B5’. Eurocard-format card with a Schroff red extraction handle, a Schroff 69001-846 rear Euroconnector, two field-side multi-pin headers, 8-position DIP configuration switch, four red status LEDs, and a bank of 32 Toshiba TLP504A dual phototransistor optocouplers. The board is also populated with Siemens SAB 8254AP-8 programmable interval timers, NEC D8155C-2 I/O/RAM/timer device, Motorola MC6844P DMA controller, NEC D81243C peripheral interface devices, plus TTL logic. Intended as a high-density galvanically isolated digital I/O/interface controller card for legacy IPD industrial automation, machine control, or process-control racks. Used condition; sold as pictured and untested. Verify exact board marking, host system, connectors, configuration, supply voltage, and pinout before purchase.

Business & Industrial > Automation, Motors & Drives > Programmable & Industrial Controllers

C115
