IPD – UPI Controller Card – UPI 314-1 – Microprocessor I/O Controller Card-Used – 1

IPD UPI 314-1 Industrial Microprocessor I/O Controller Card Eurocard D8741AD

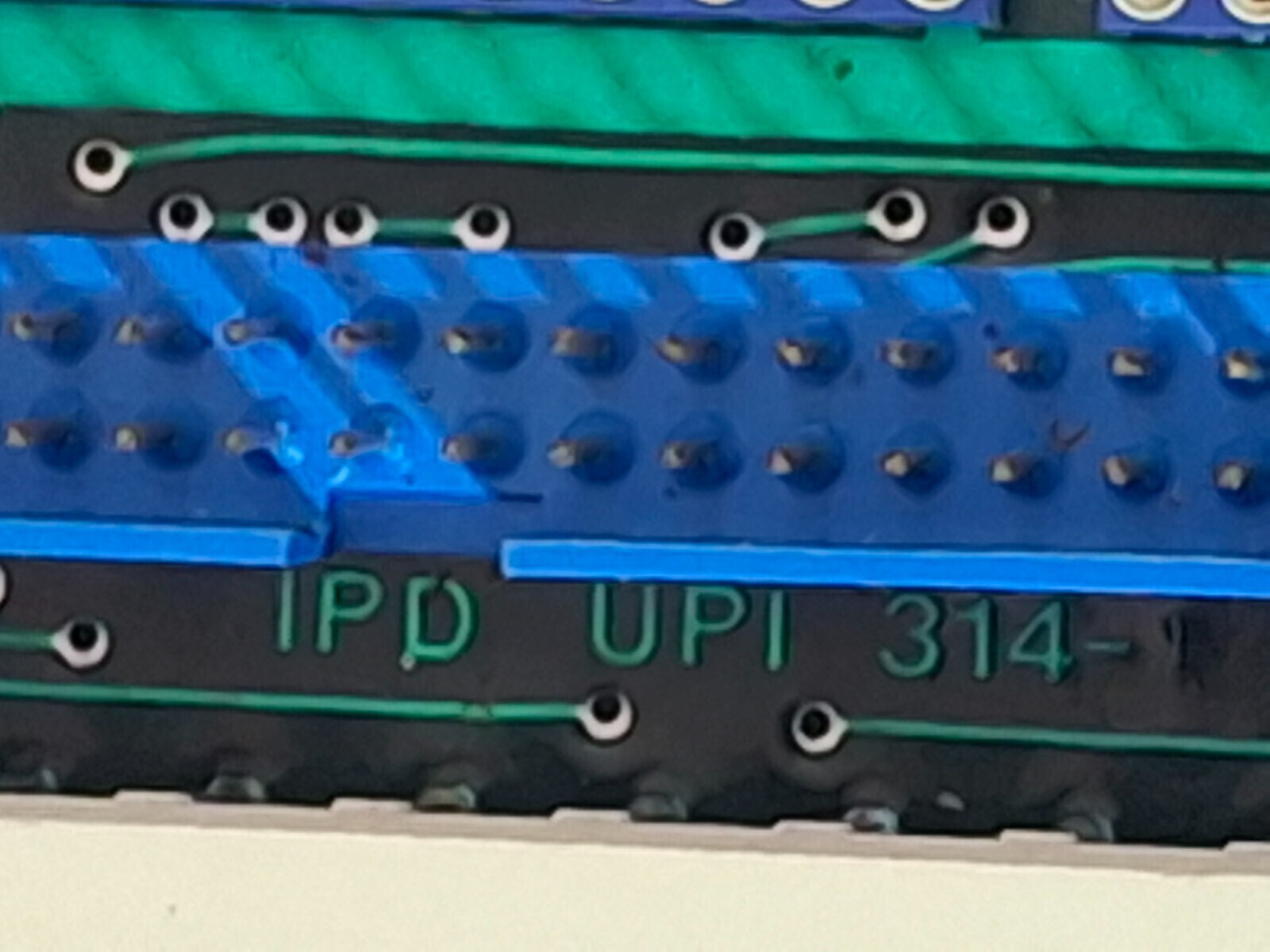

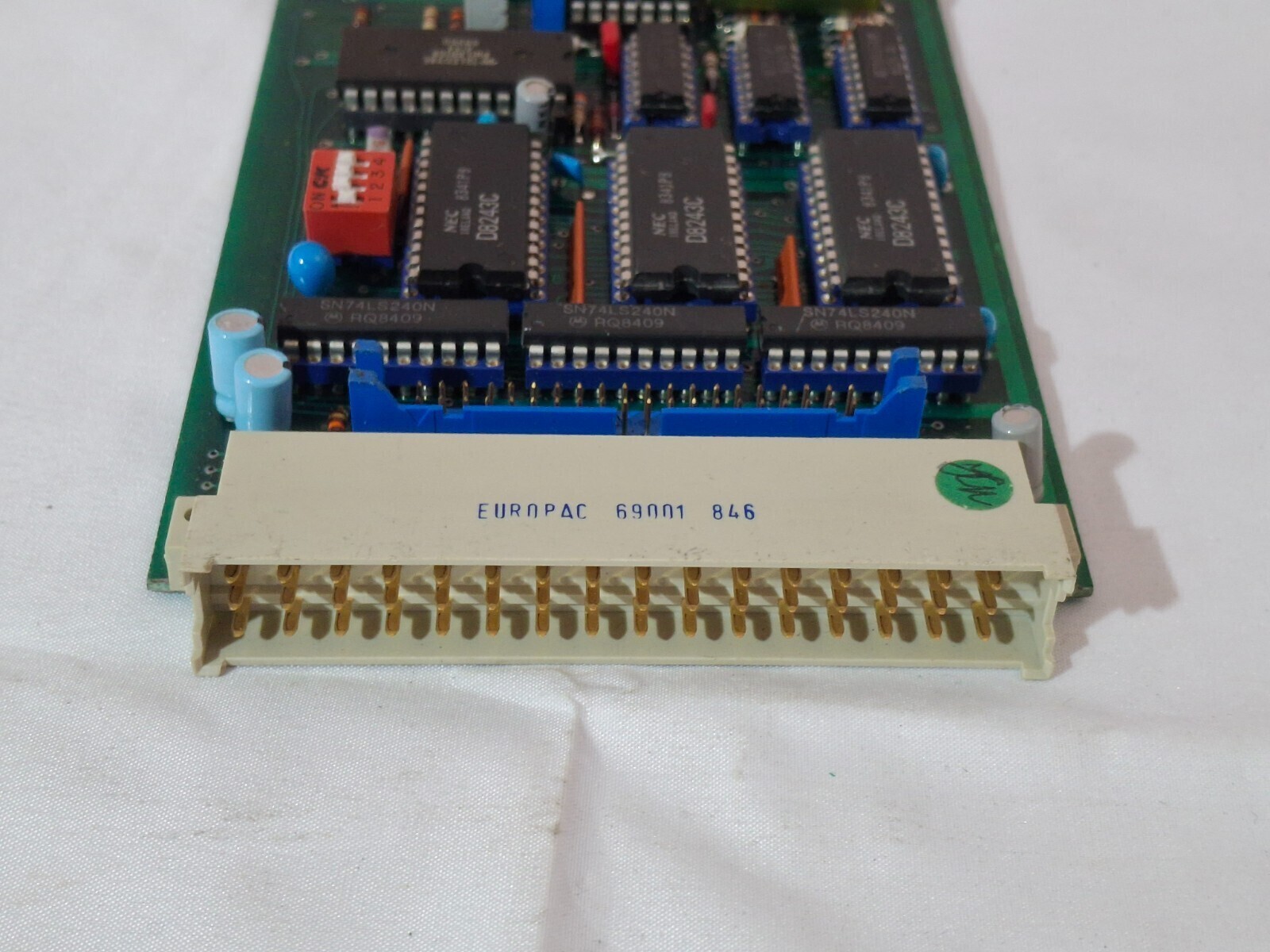

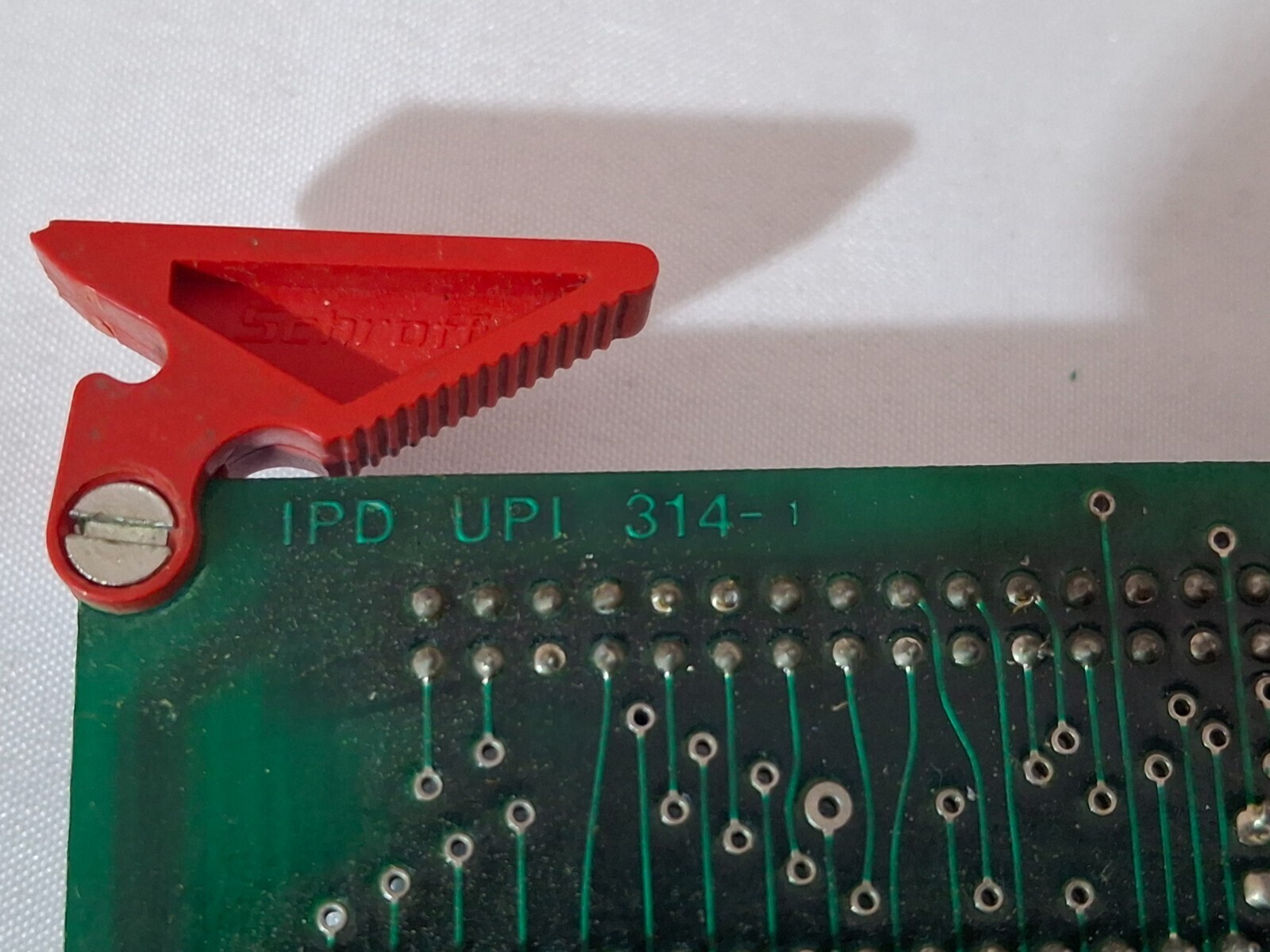

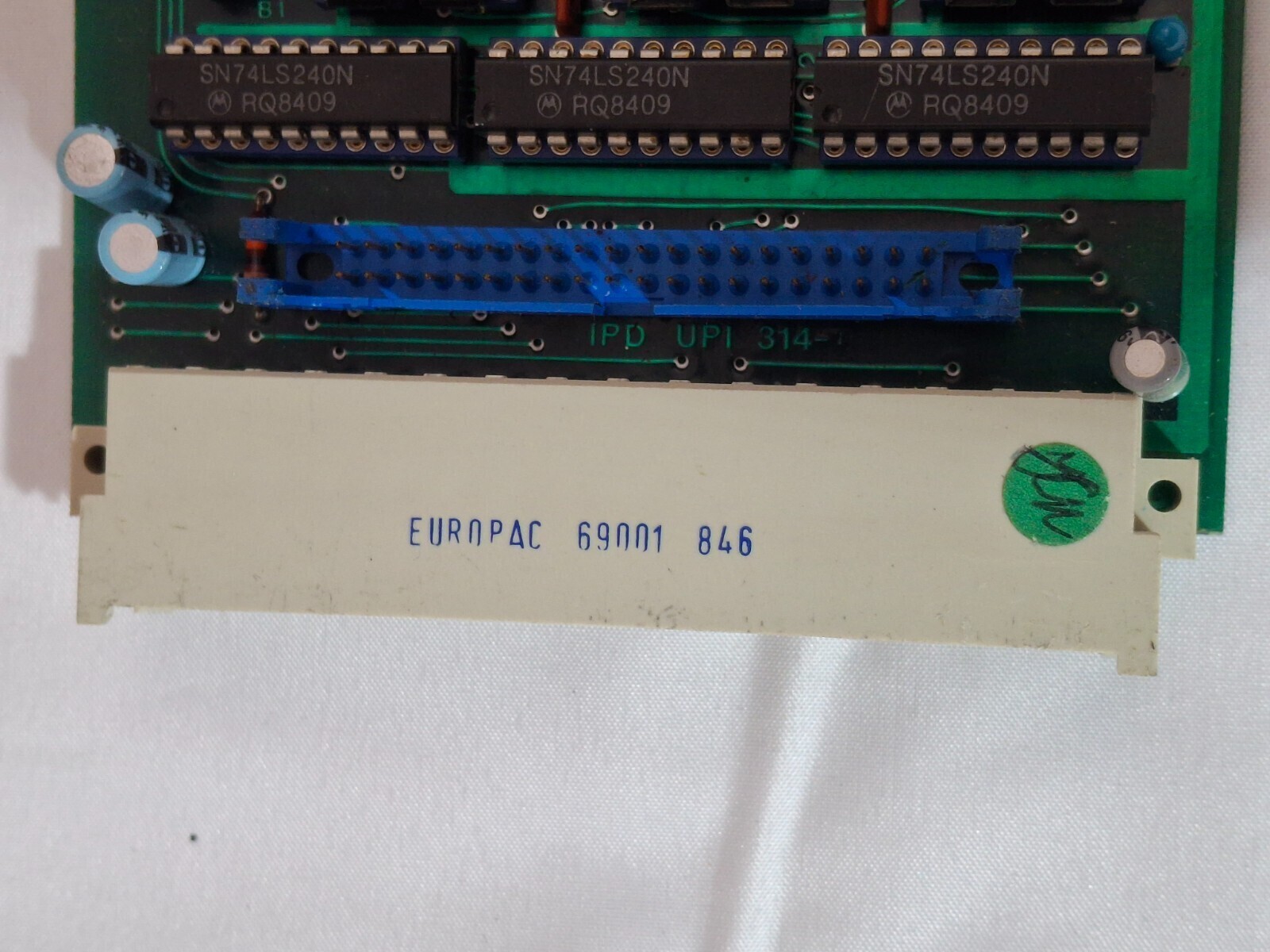

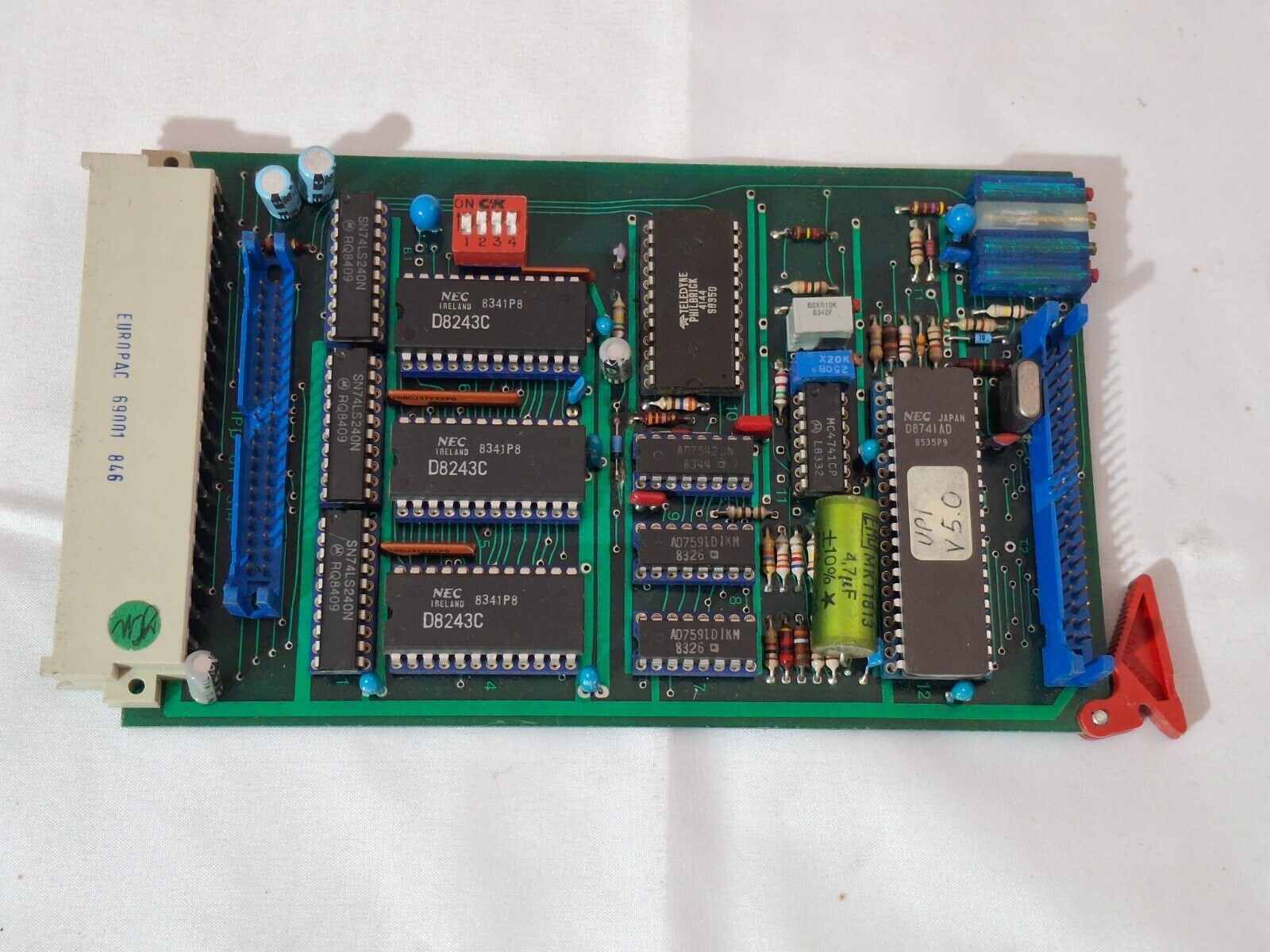

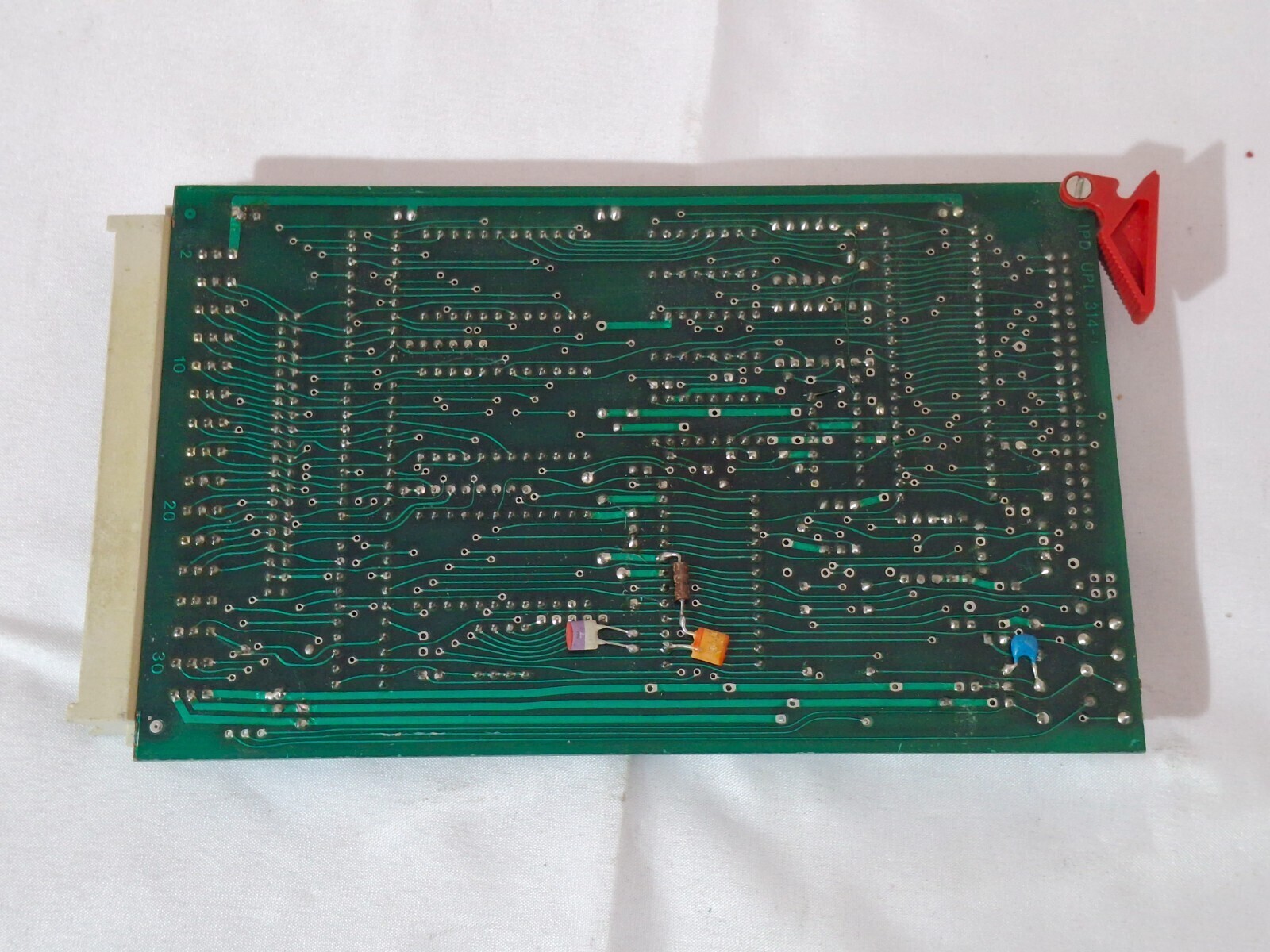

Legacy IPD industrial microprocessor and I/O controller board marked ‘IPD UPI 314-1’. Eurocard-format PCB with EUROPAC 69001 846 48-contact 3-row connector, red Schroff extraction handle, two 50-pin IDC ribbon cable headers, DIP configuration switch, and a programmable NEC D8741AD 8-bit microcontroller/peripheral interface IC. Board is populated with three NEC D8243C PPI/I-O expander devices, NEC D8741AD controller, Mitsubishi M5L8254P programmable interval timer, 74LS-series TTL logic, and analogue/interface circuitry. Suitable as a replacement or repair spare for legacy IPD rack-mounted industrial automation, machine-control, process-control, or OEM computer systems. Used condition; sold as pictured and untested. Confirm the exact board marking, connectors, configuration, power requirements, and host system compatibility before ordering.
