PCB – CPU Control Board – AZP-308-2 – Industrial CPU / Control PCB Card-Used, Pulled/Removed – 2
Quote request
Request a quote for this part
The part is already filled in. Add your details and any comments, and we reply with availability and a quote.
Description

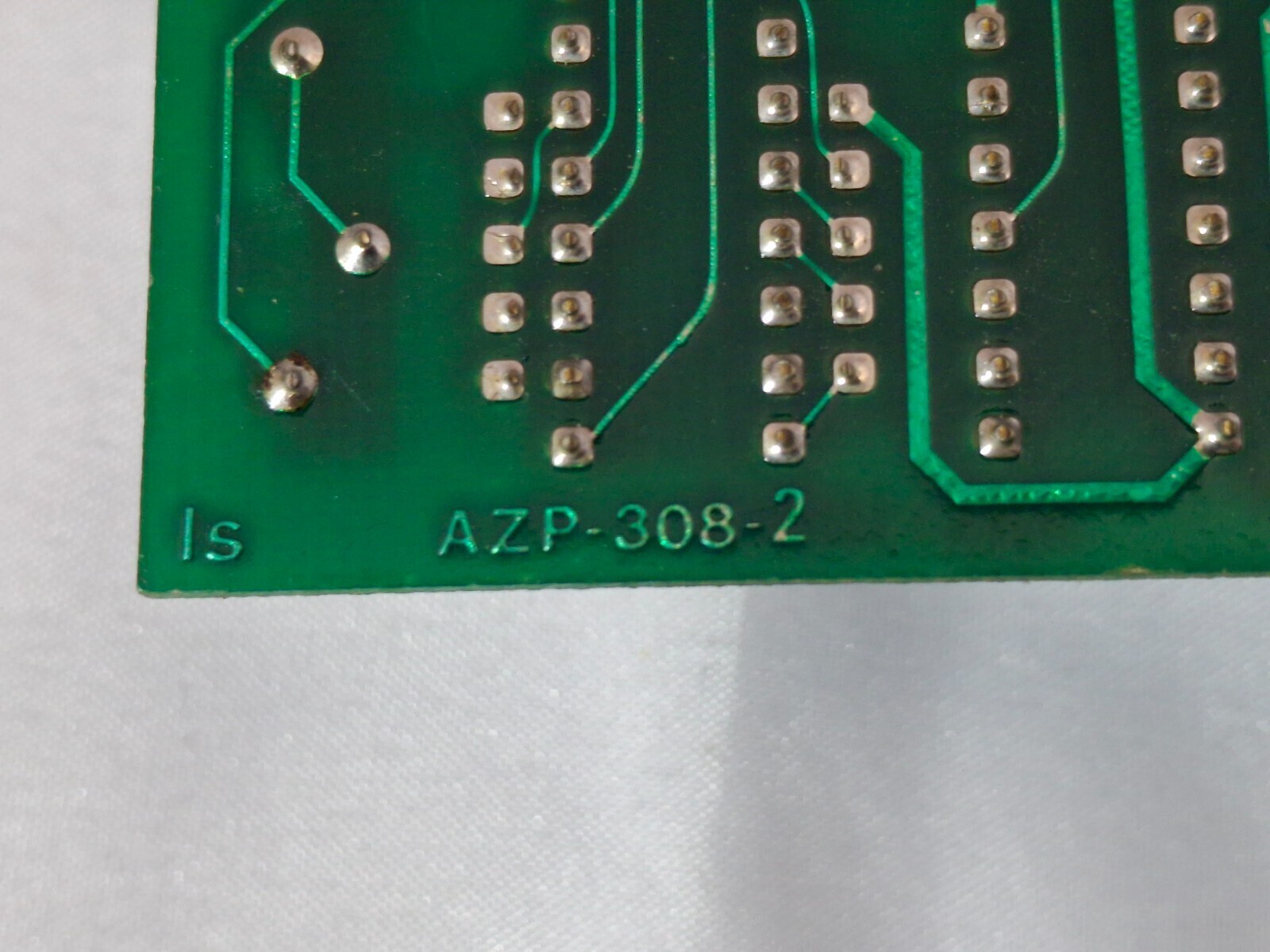

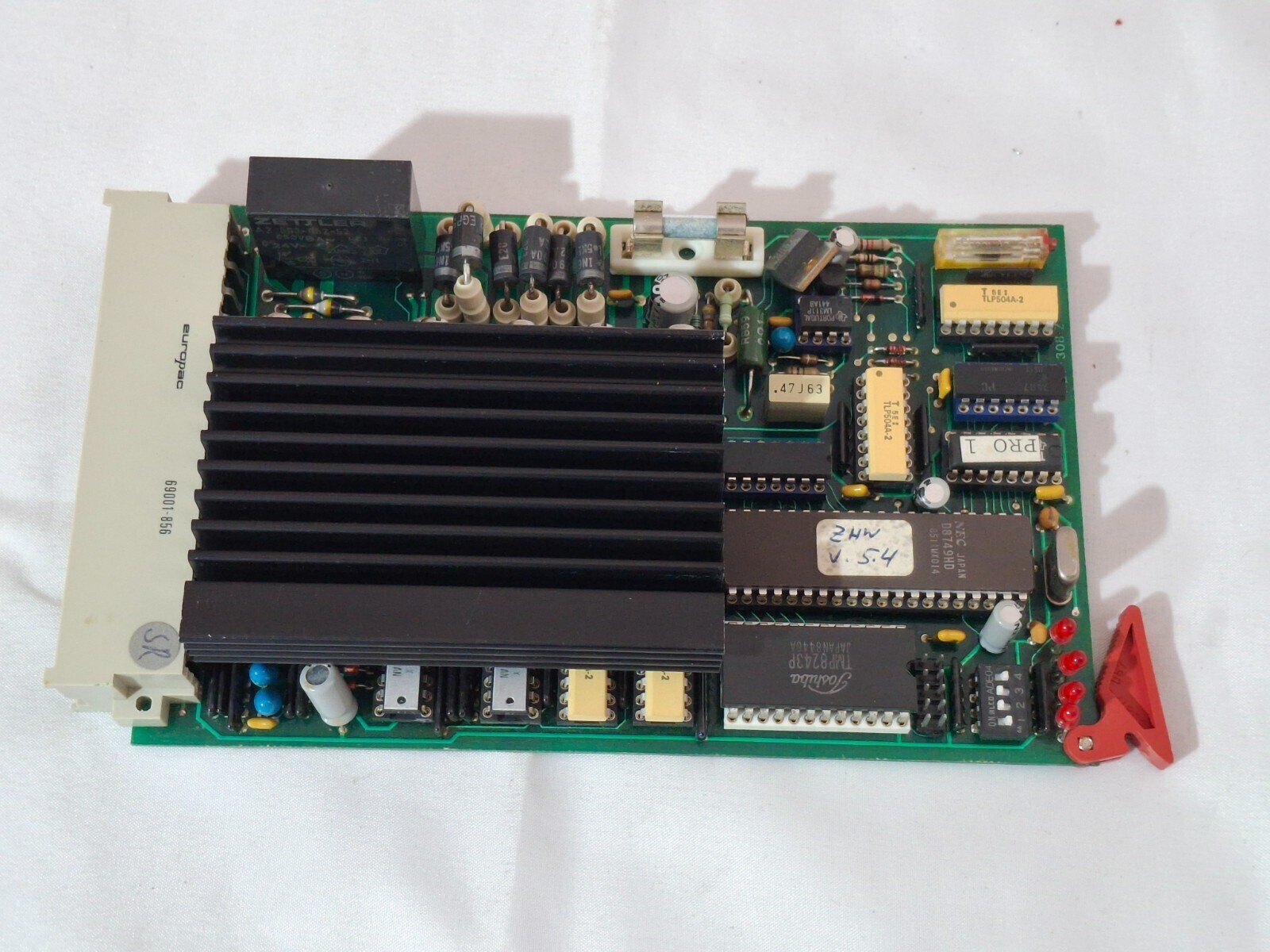

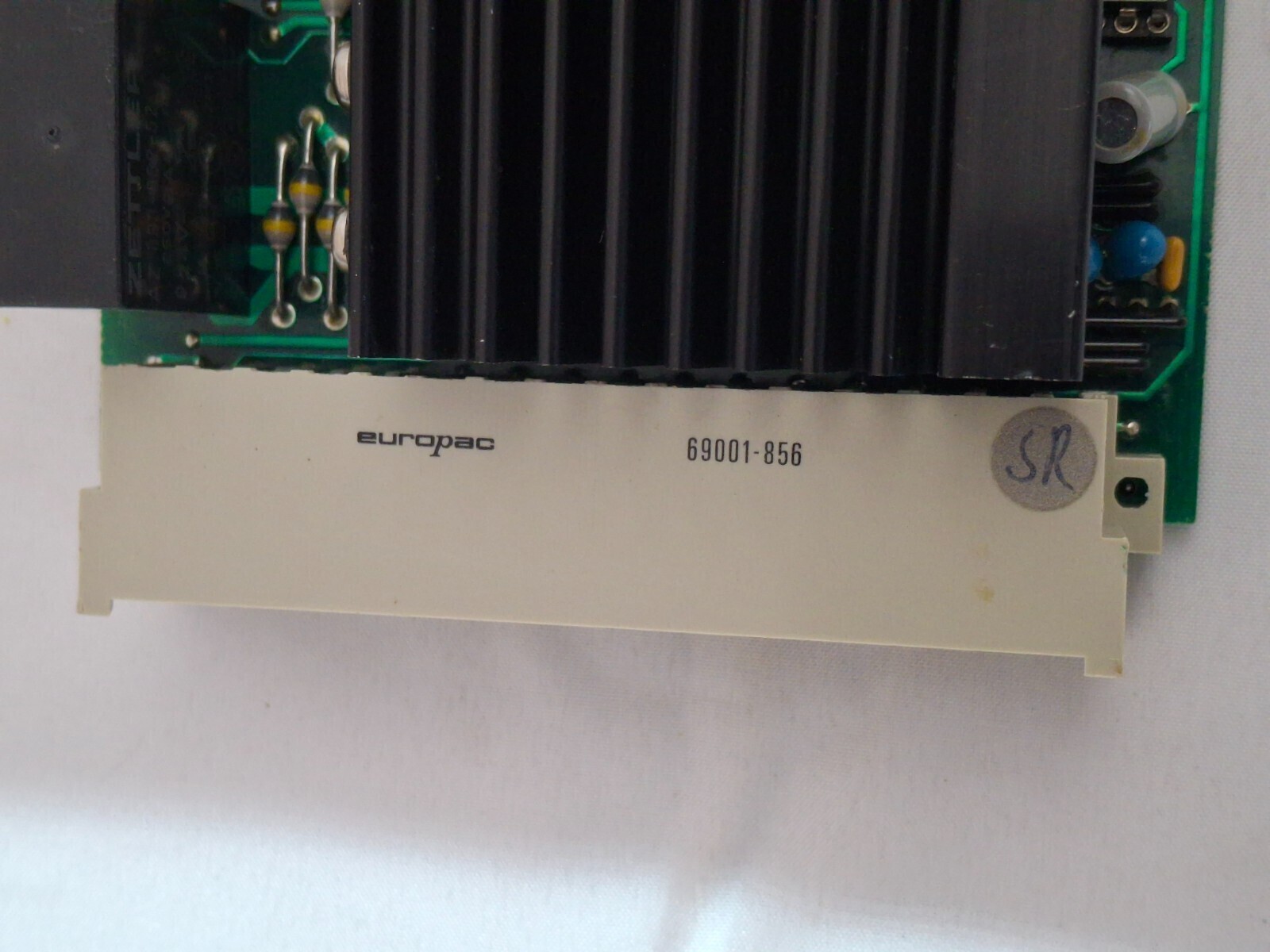

AZP-308-2 Industrial CPU Control PCB Board NEC D8749AD TLP604A-2 Europac 69001-856Legacy industrial CPU/control PCB, board marking AZP-308-2 (also marked IS). Features a NEC D8749AD EPROM microcontroller marked ‘ZHH V5.4’, a TLP604A-2 optocoupler, TLP504A-2 optocoupler, Toshiba TLP624A-2 optocoupler, solid-state relay/output components mounted to a large black heatsink, 4-position DIP switch, four red status LEDs, fuse, relay, and red card ejector handle. Fitted with a Europac DIN 41612-style Type-G edge connector, marked 69001-856. Suitable for spare-parts recovery, repair, or replacement in compatible legacy industrial automation/process-control systems. Sold as pictured, pulled from a decommissioned system. Exact host machine and electrical compatibility are not confirmed; please match all markings, connector configuration, and circuitry before purchase.
C116
Additional information
| OEM part number | AZP-308-2 |
|---|---|
| Part condition | Used (untested) |
| Availability | In stock |
