Logosol 9432 DE/RS-11-1012 ISA Motion Control / Servo Interface Card DB-25F

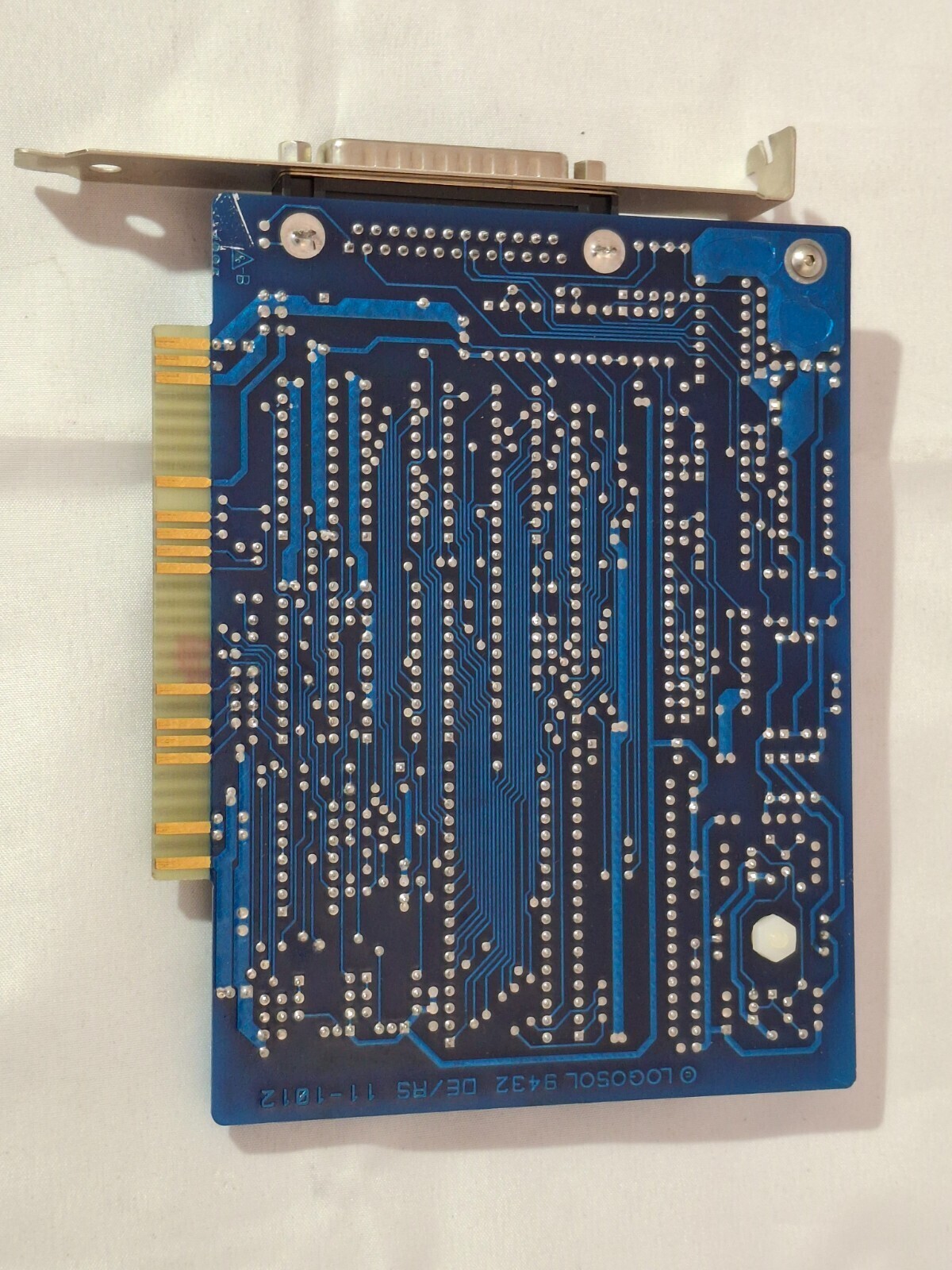

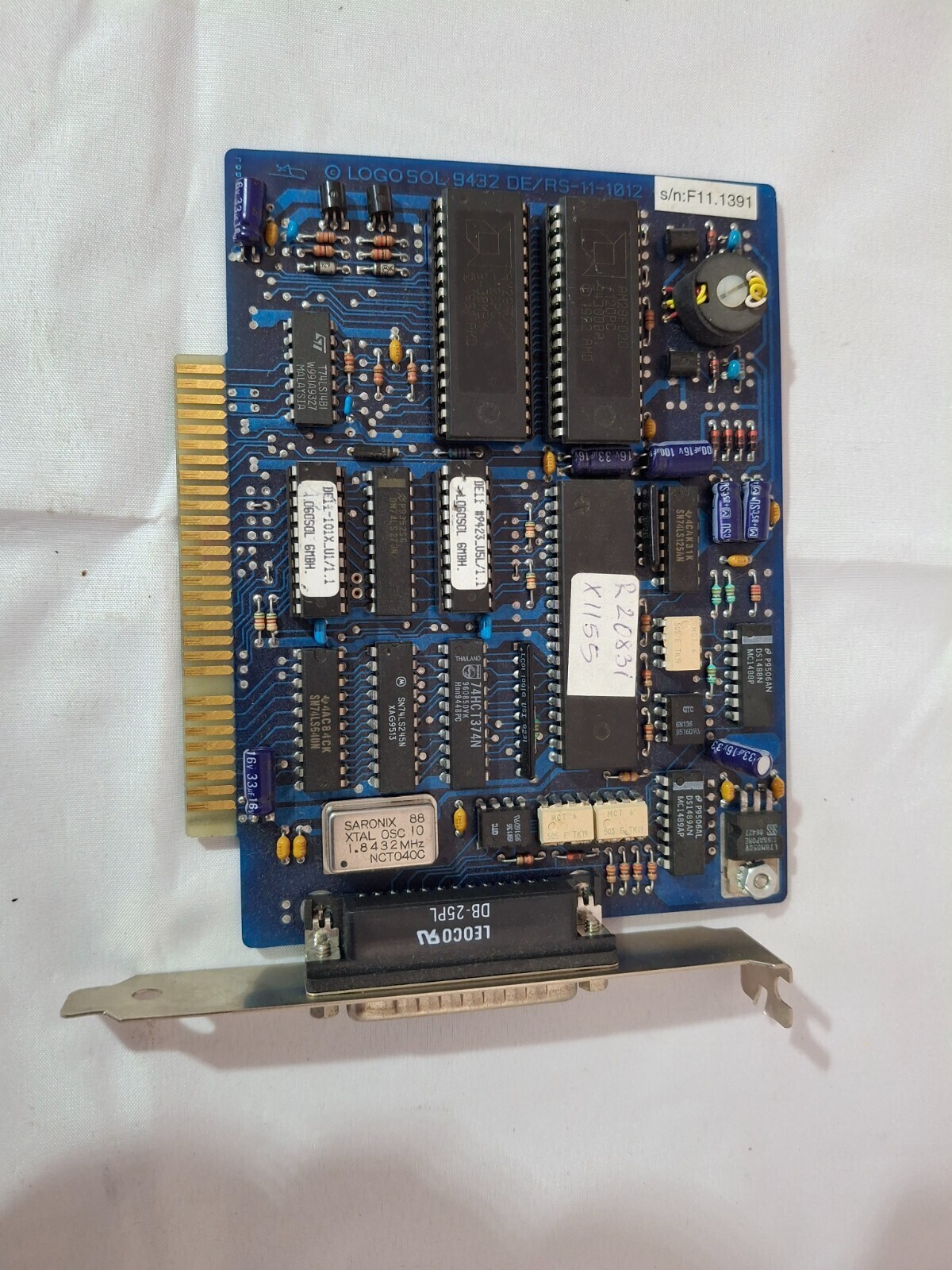

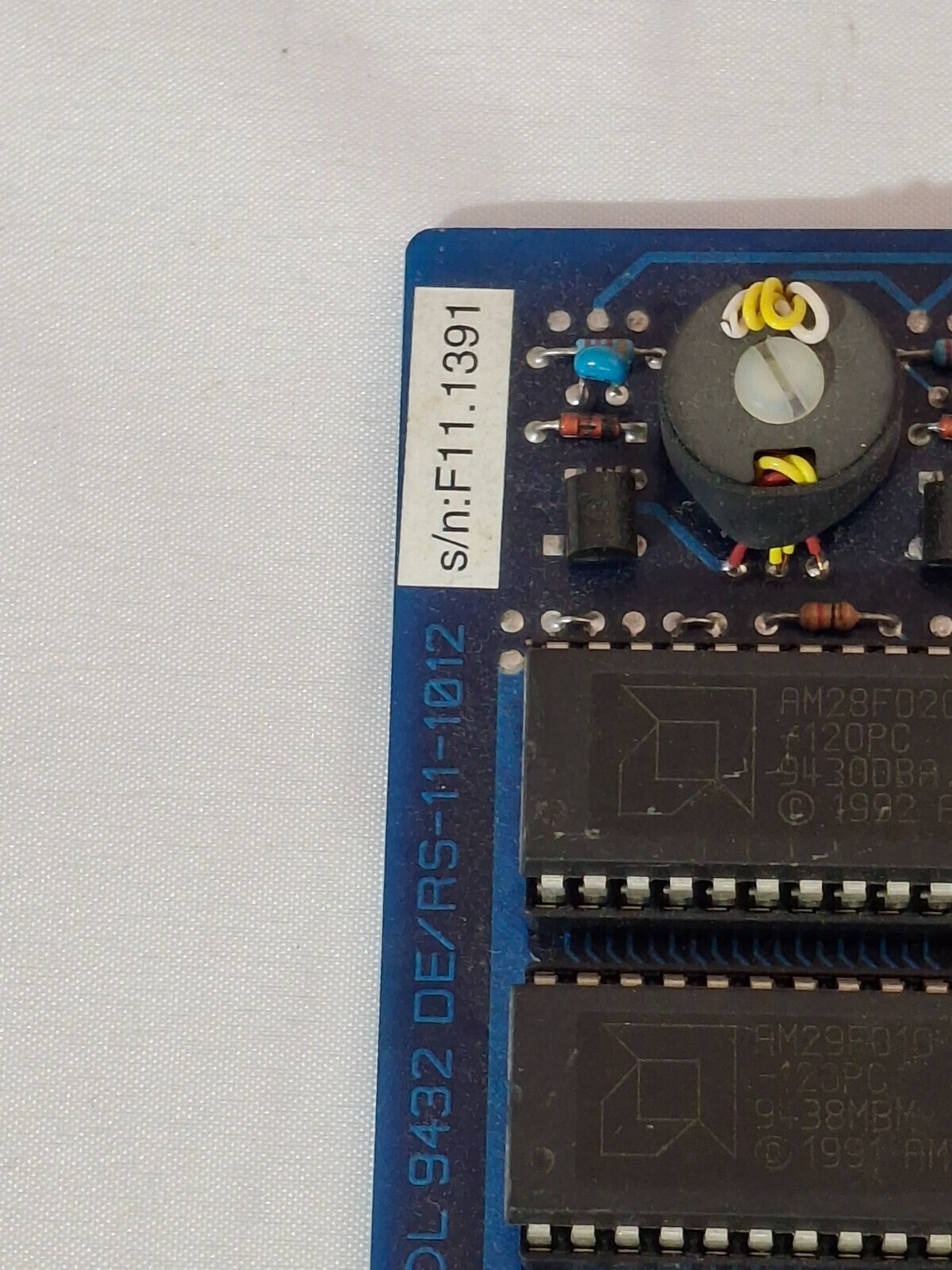

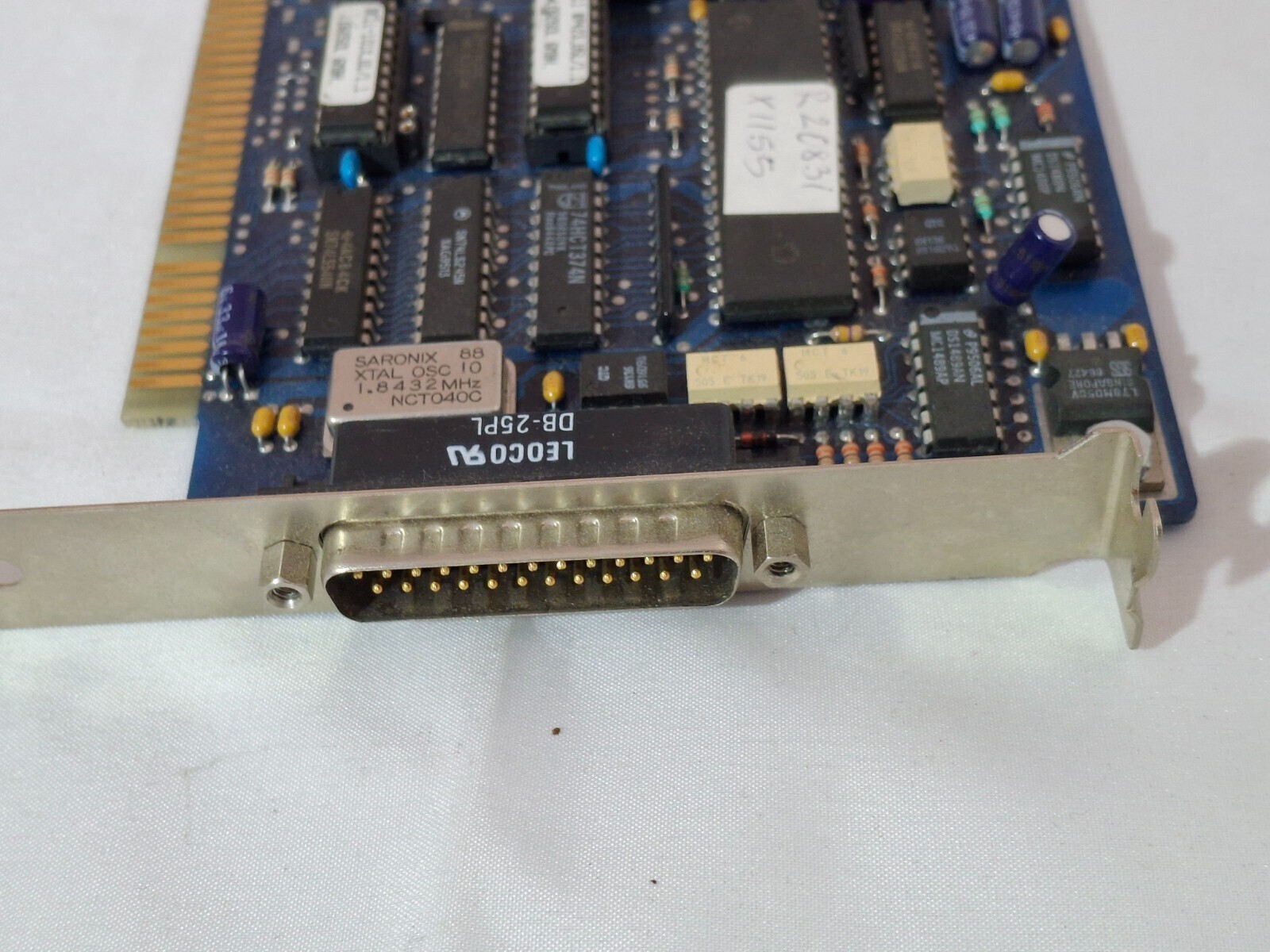

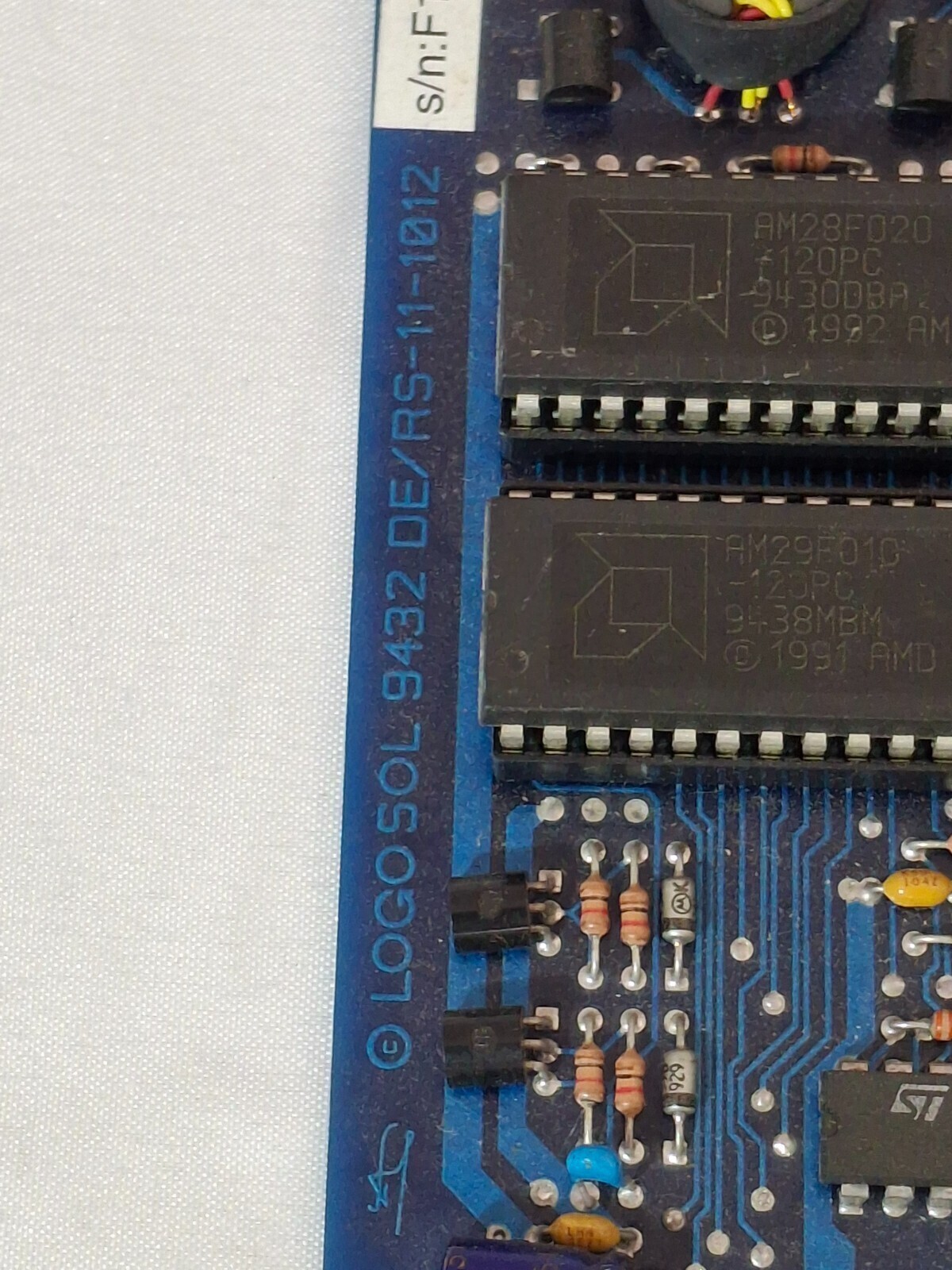

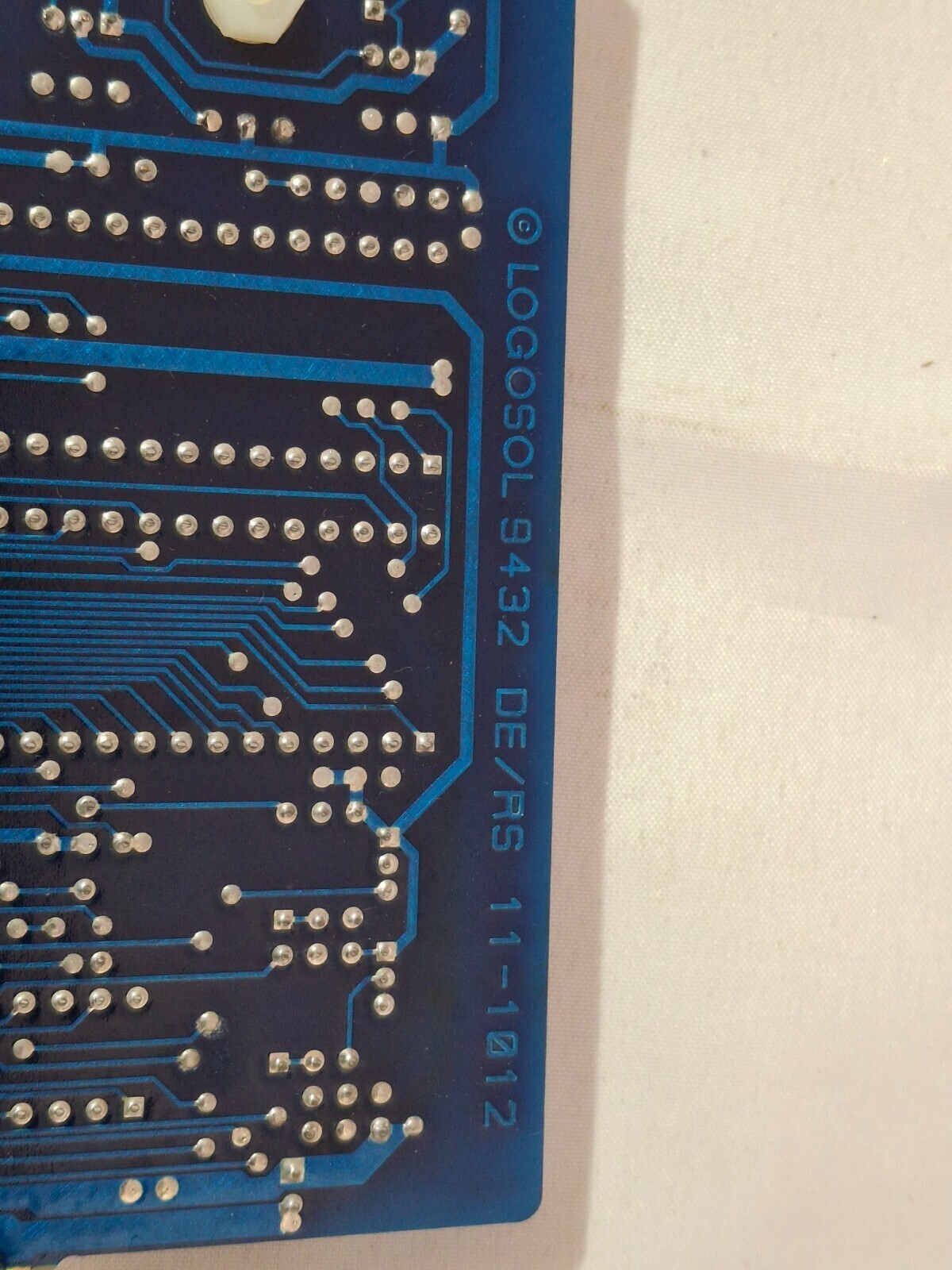

Used Logosol 9432 DE/RS-11-1012 ISA interface card with DB-25F connector. The blue PCB is marked (C) LOGOSOL 9432 DE/RS-11-1012 and carries AMD AM28F020 and AM29F010 flash devices, a Saronix 18.432 MHz oscillator and multiple logic ICs, suggesting use as a motion-control or servo interface card in Logosol industrial automation systems. A DB-25 female connector on the bracket provides the main external interface, likely for connection to a Logosol controller or servo drive. Serial number label on the top edge reads s/n: F11.1391. The board was removed from a working system but has not been further tested by us. Cosmetic condition is good for its age with normal handling marks. Because specific documentation for this exact card is not publicly available, it is offered as a spare/repair item primarily for technicians familiar with Logosol equipment or capable of reverse-engineering the interface. Please review the high-resolution photos carefully to confirm pinout, components and suitability for your application before purchase.
