LIPPERT Automationstechnik GmbH – PC96 Digital I/O Card 16-Channel – S-PC96-DIO16-2 – Digital I/O Interface Card-Used – 2000.9424

Description

LIPPERT Automationstechnik S-PC96-DIO16-2 16-channel digital input/output interface card for PC96 passive backplane bus systems.

This German-manufactured industrial automation component provides 16 independent digital input channels and 16 digital output channels with optocoupler isolation technology. Designed for signal conditioning and control interfacing in legacy industrial automation systems, manufacturing equipment, laboratory automation, and process control applications.

Features robust TTL/LVTTL signal levels compatible with standard industrial control logic. 50-pin IDC ribbon connector for direct PC96 bus connection. Includes comprehensive channel configuration via DIP switch arrays and calibration potentiometers for flexible integration into various system architectures.

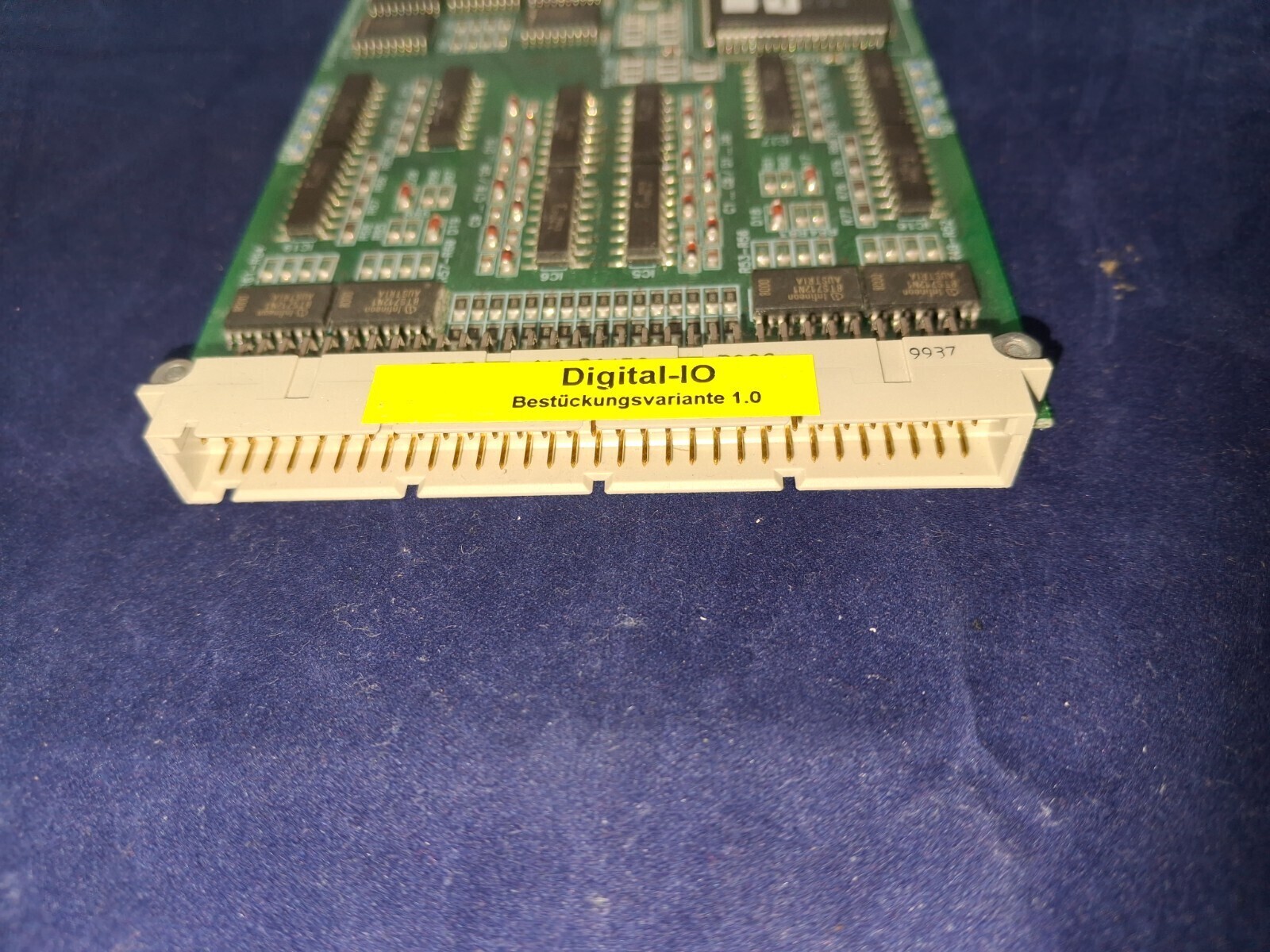

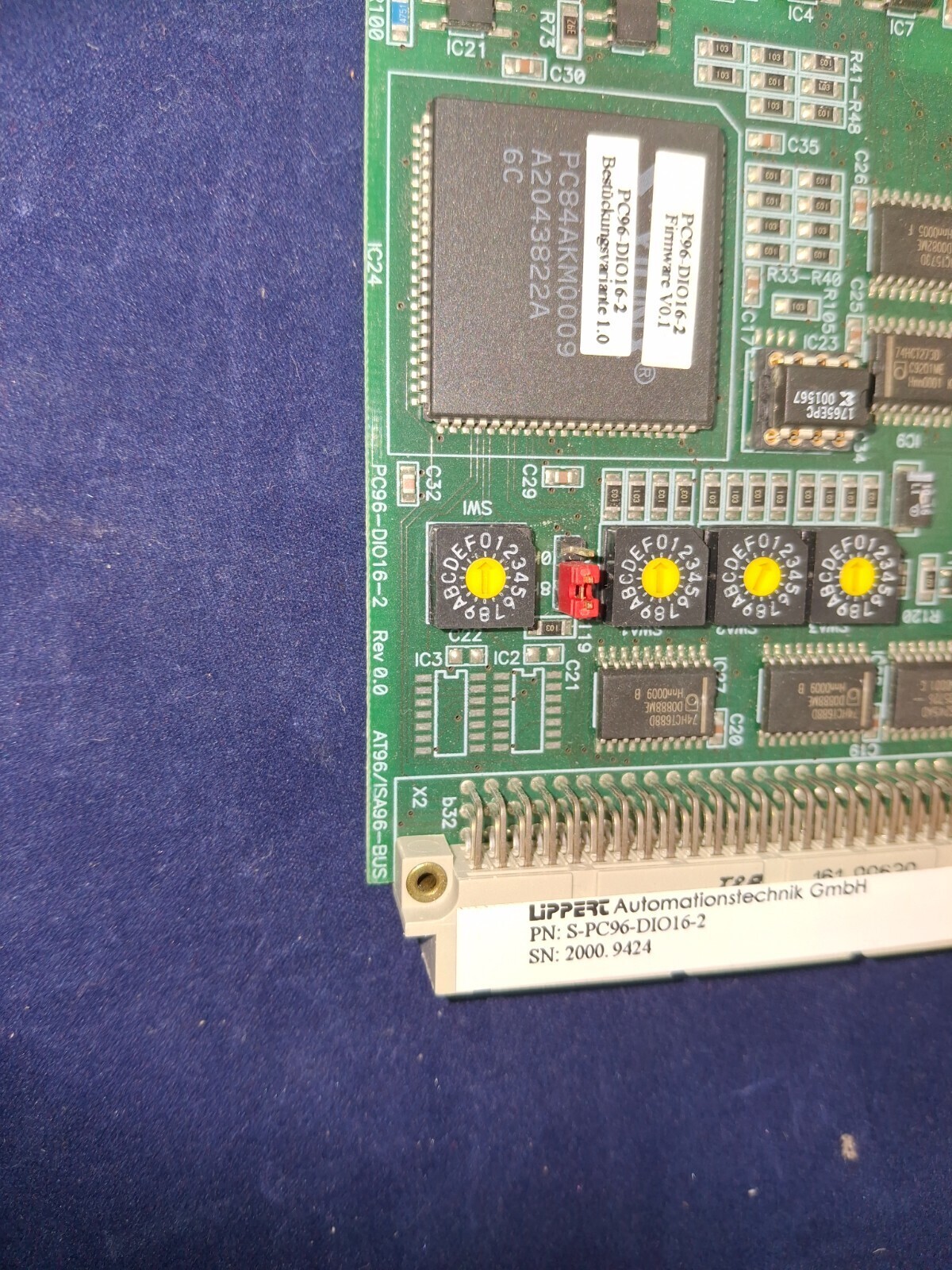

Multiple yellow-topped DIP switches and red/orange relay sockets enable rapid configuration for different input/output signal types. Optocoupler-based isolation protects sensitive logic circuits from electrical noise generated by industrial power switching. PCB Variant 1.0, standard assembly configuration.

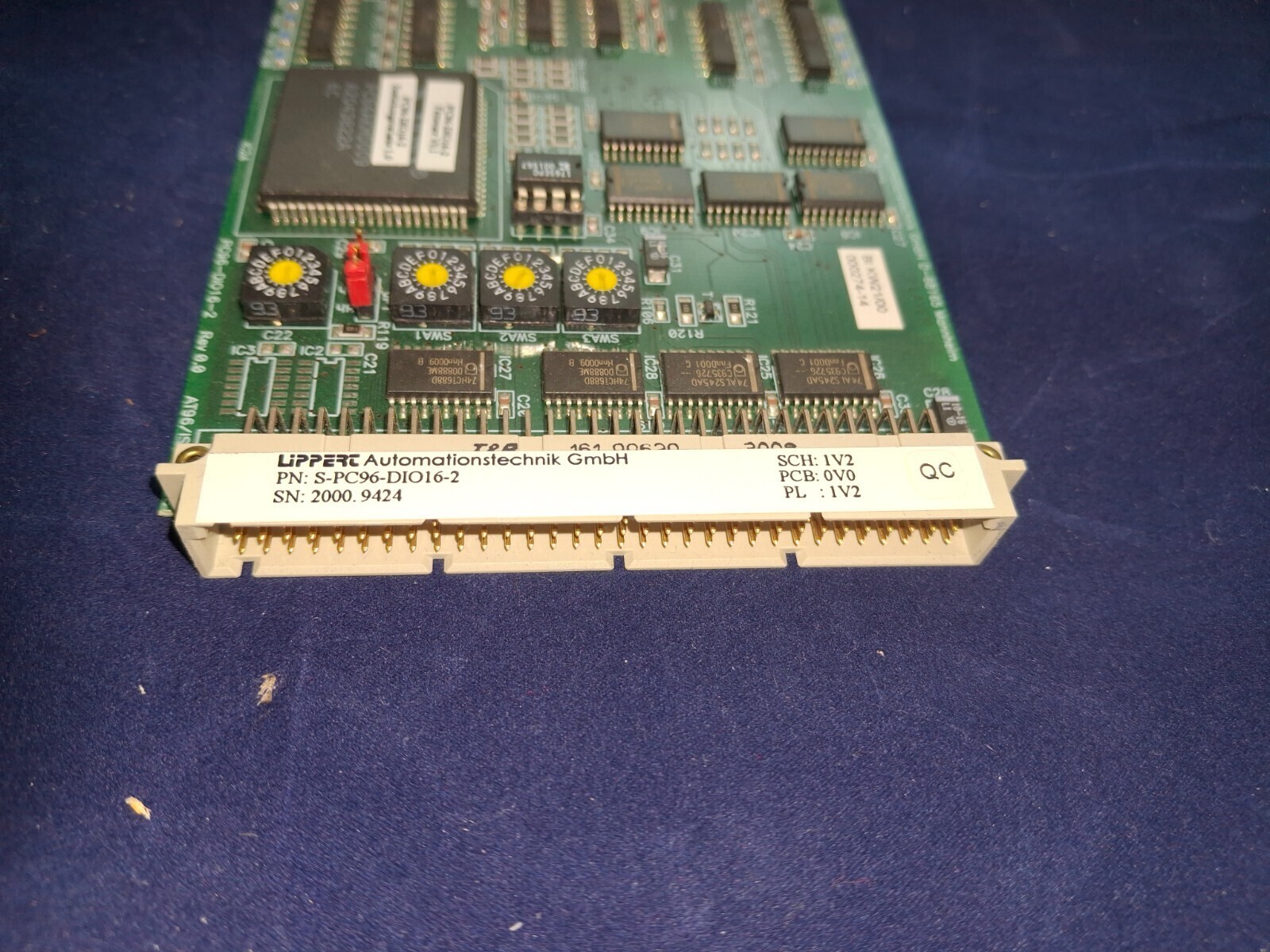

Serial number 2000.9424 indicates manufacturing circa 2000. Schematic 1V2, PCB revision 0V0, Quality Control approved.

German industrial-grade construction with professional solder mask and component placement typical of LIPPERT’s precision manufacturing standards.

Requires PC96-compatible passive backplane system for operational deployment. Used condition with typical cosmetic wear from laboratory or manufacturing facility operation. Assembly Variant 1.0 confirms standard configuration (non-custom). Suitable for restoration of legacy PC96 control systems, spare parts inventory, industrial equipment maintenance, and automation system integration. Additional units available. Specialist product for industrial automation professionals and legacy system maintainers.

S049
