Lippert Automationstechnik GmbH – Digital-IO Input/Output Module PC96-DIO16-2 Fully Populated – PC96-DIO16-2 – Industrial I/O Controller Board-Used – SN: 4897.5588

Description

LIPPERT Automationstechnik Digital-IO PC96-DIO16-2

Industrial Controller Fully Populated Production Unit Professional industrial automation controller module: LIPPER Automationstechnik GmbH (Mannheim, Germany) Digital-IO interface board, Model PC96-DIO16-2, fully populated production unit with documented serial number and complete component assembly.

This is a fully integrated industrial-grade controller featuring:

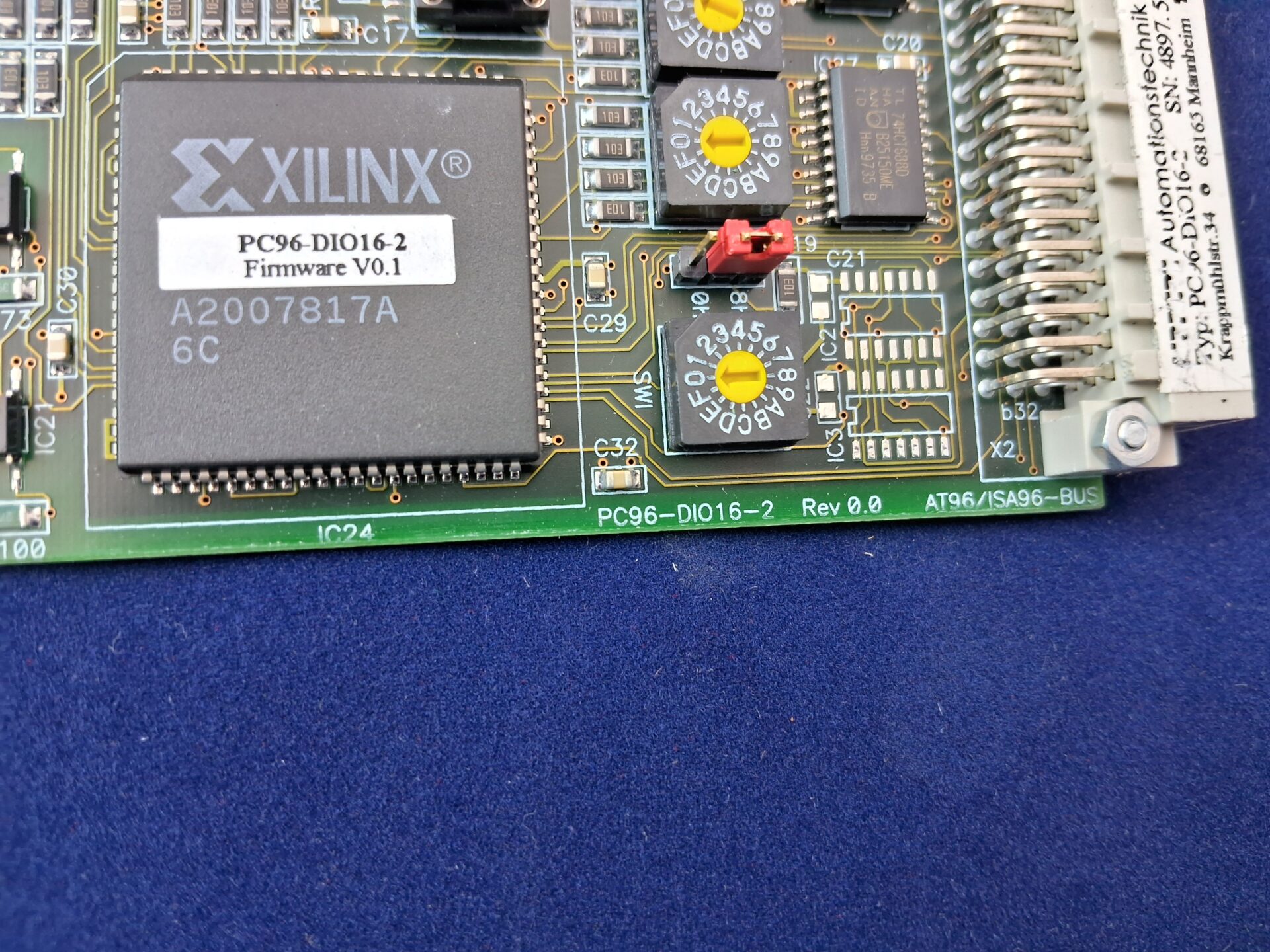

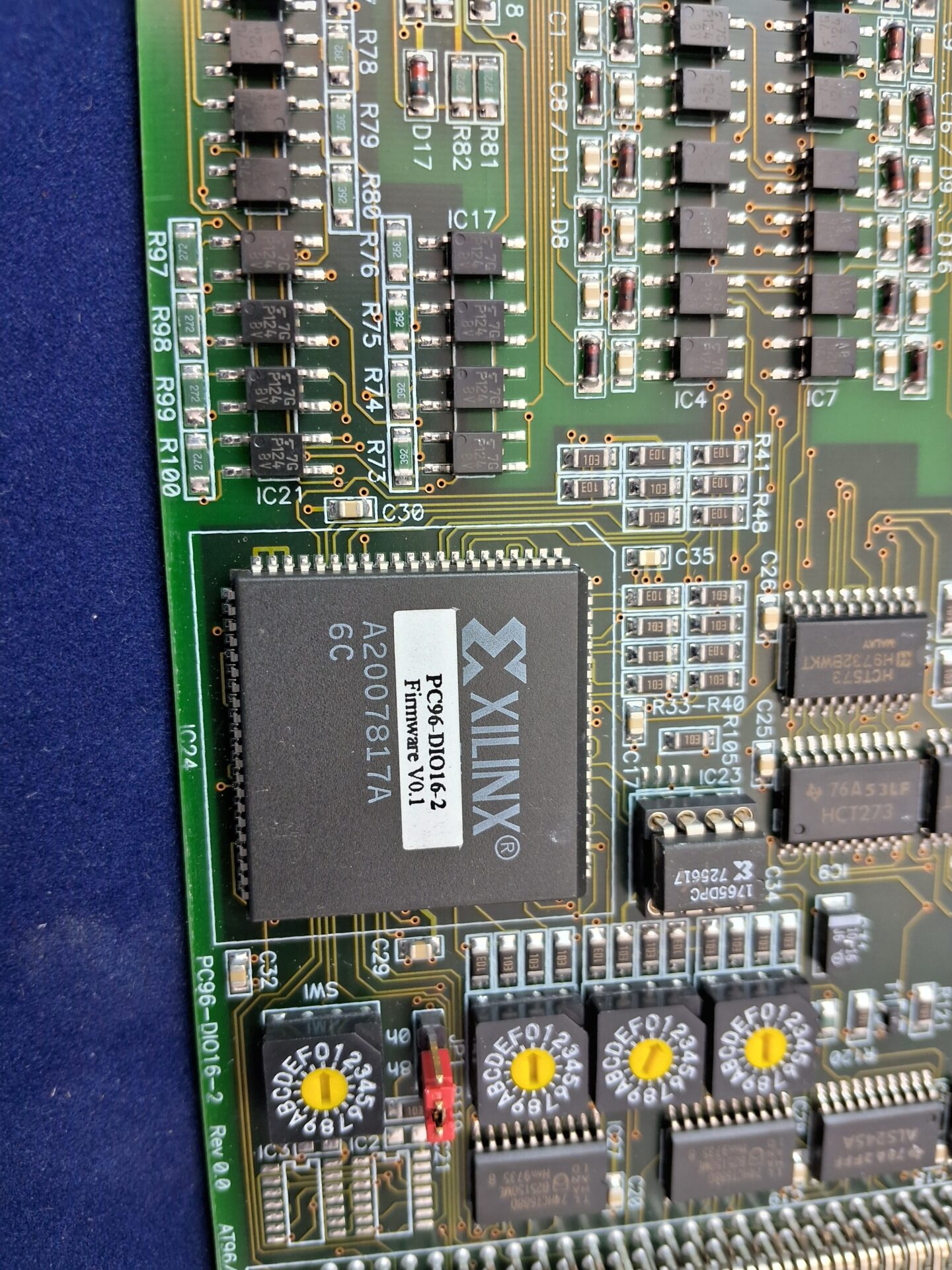

(1) Xilinx XC5202 FPGA programmable logic device with Firmware V0.1 implementation;

(2) Complete component population – all IC slots filled with logic chips, memory arrays, relay driver stages;

(3) 16 optoisolated digital I/O channels with full relay switching capability and integrated control logic;

(4) Yellow indicator LEDs and red manual override switches for safety operations;

(5) Multiple DIP-switch configuration modules for channel addressing and protocol selection;

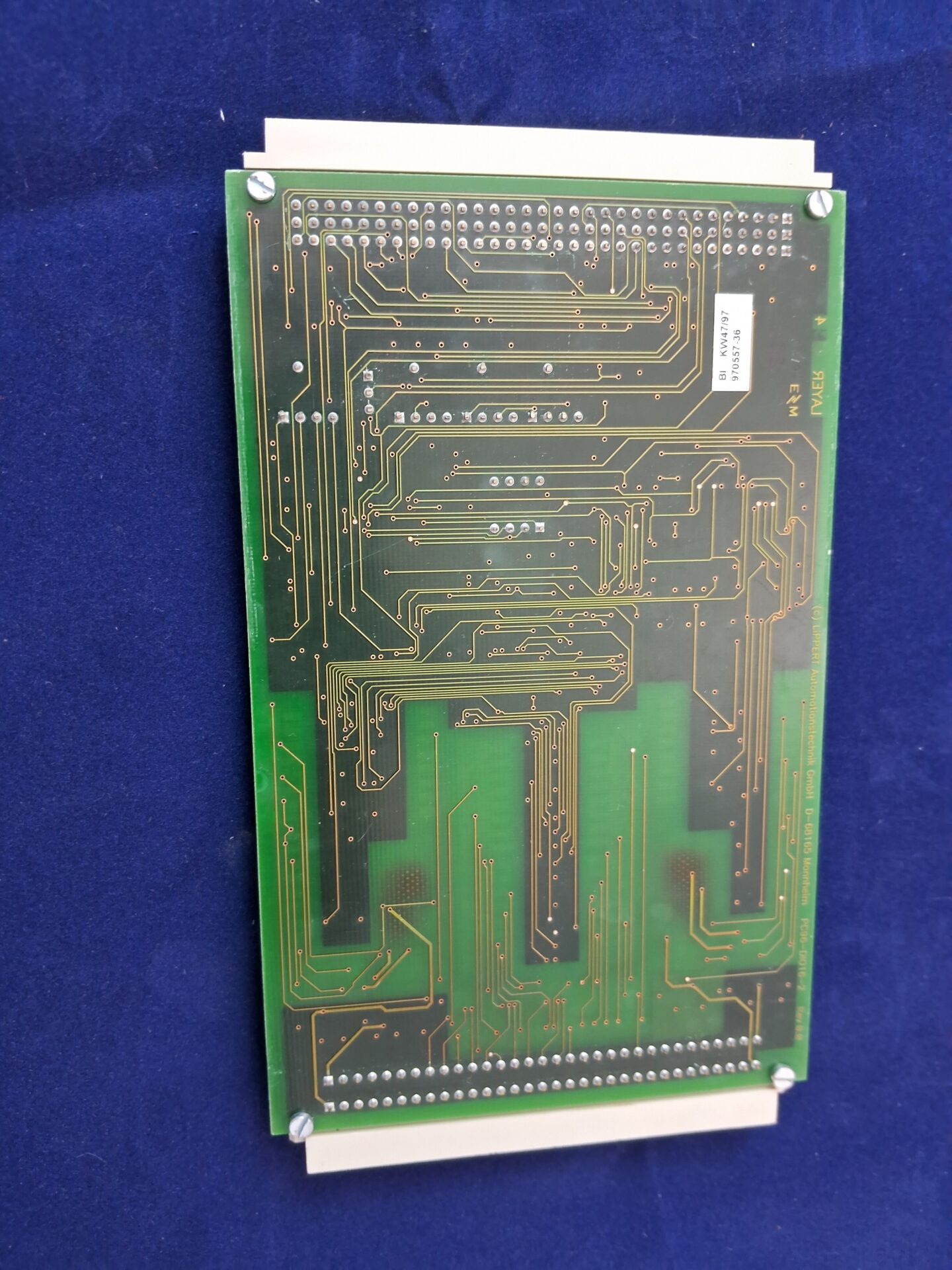

(6) Industrial standard PCB construction with dual-row connector interface;

(7) Full TTL/CMOS logic level compatibility; (

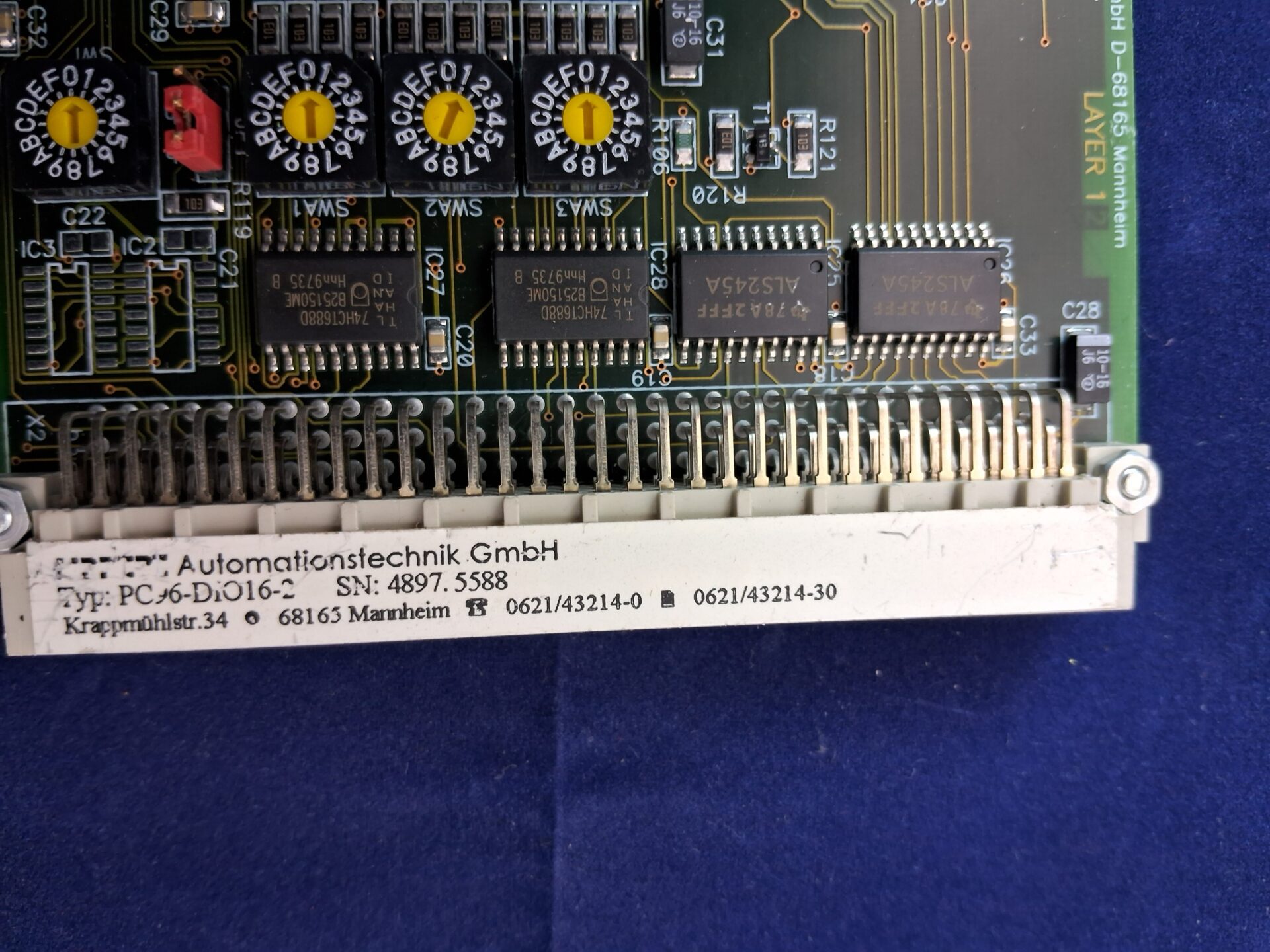

8) Documented production unit: Serial Number SN: 4897.5588, Krapmühlstr.34, D-68165 Mannheim, Germany. Part designations: 0621/43214-0 / 0621/43214-30.

Used condition

Suitable for: industrial equipment maintenance, PLC system integration, legacy automation system retrofit, equipment restoration specialists. Manufactured in Mannheim, Germany by LIPPERT Automationstechnik. Compatible with 1990s-2000s vintage industrial control systems and SVG track equipment.
