Crouzet – Chronos 2 DIN Rail Timer – TU2R1 – Multifunction Analog Time Delay Relay-Used – 1
Quote request
Request a quote for this part
The part is already filled in. Add your details and any comments, and we reply with availability and a quote.
Description
Crouzet TU2R1 88 865 305 Chronos 2 Multifunction Analog Timer Relay 24VDC 24-240VAC DIN Rail

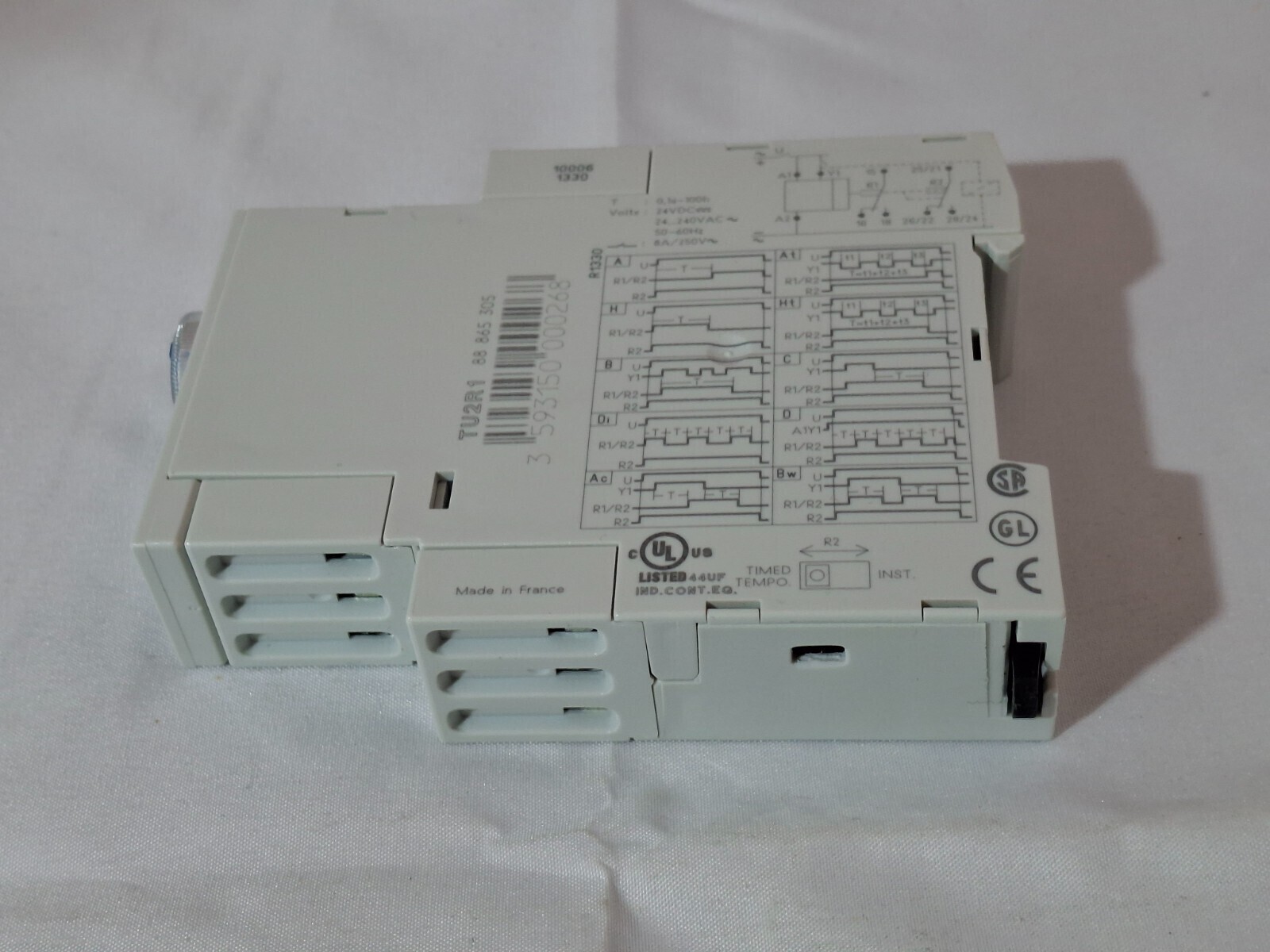

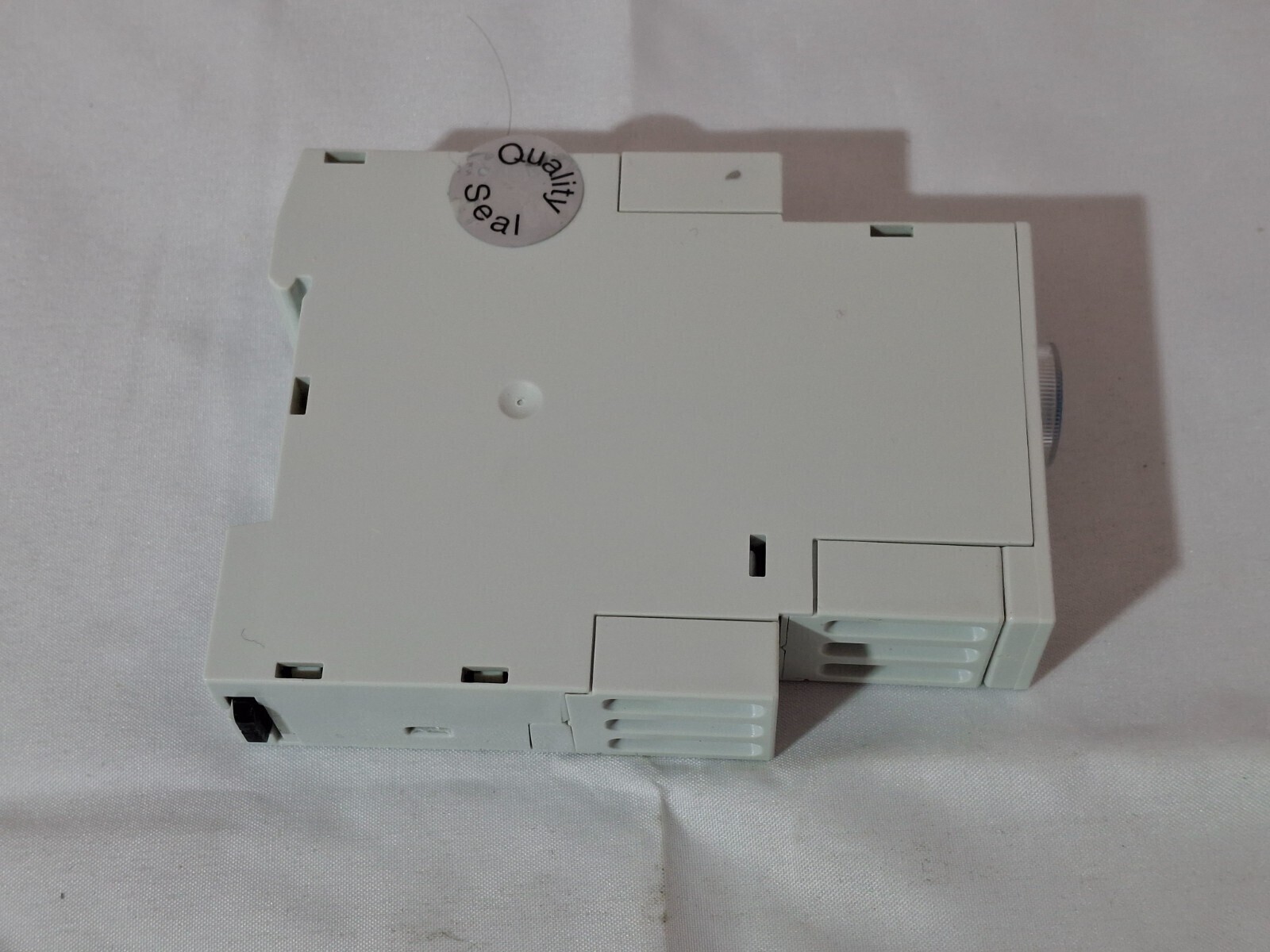

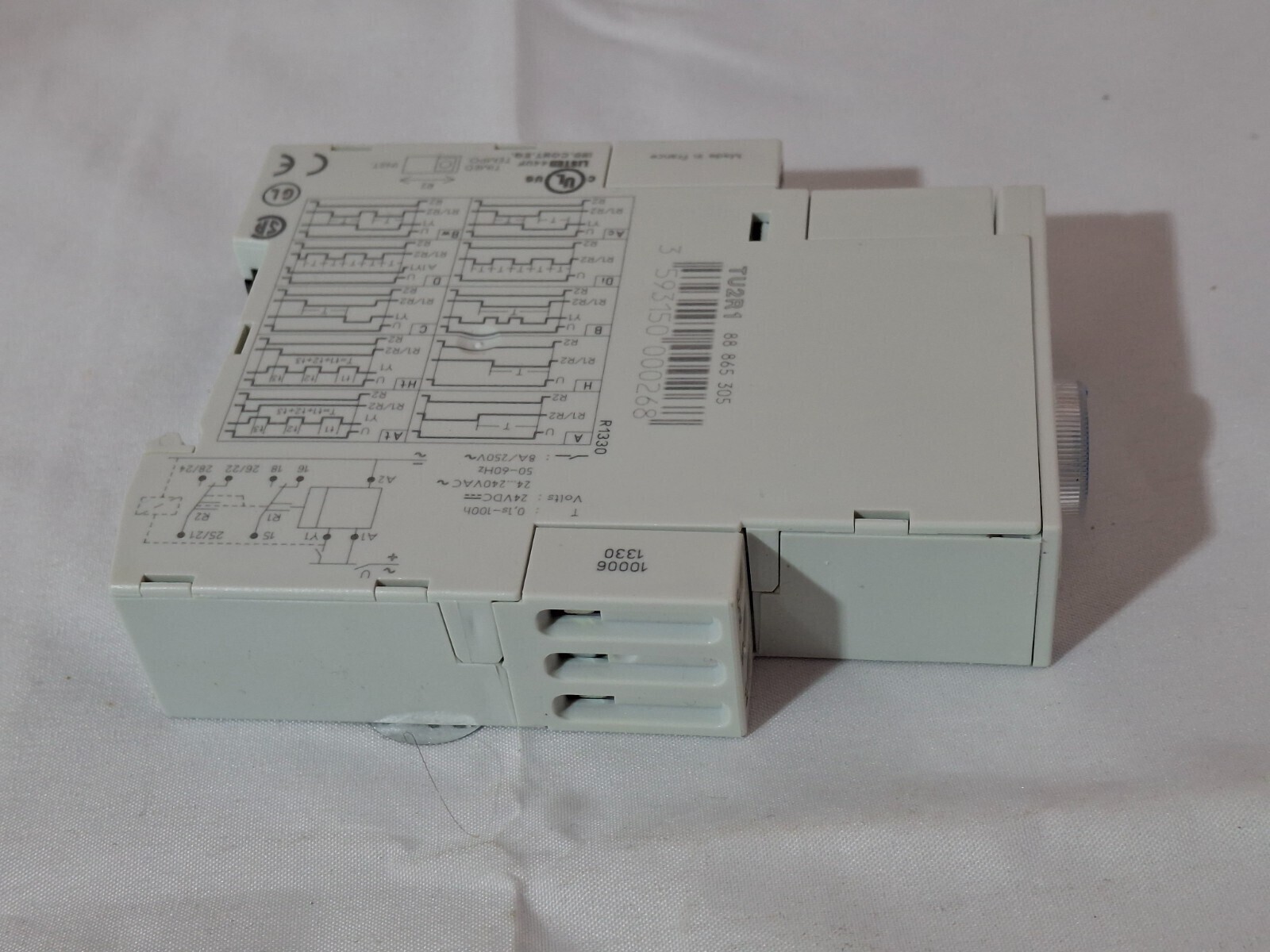

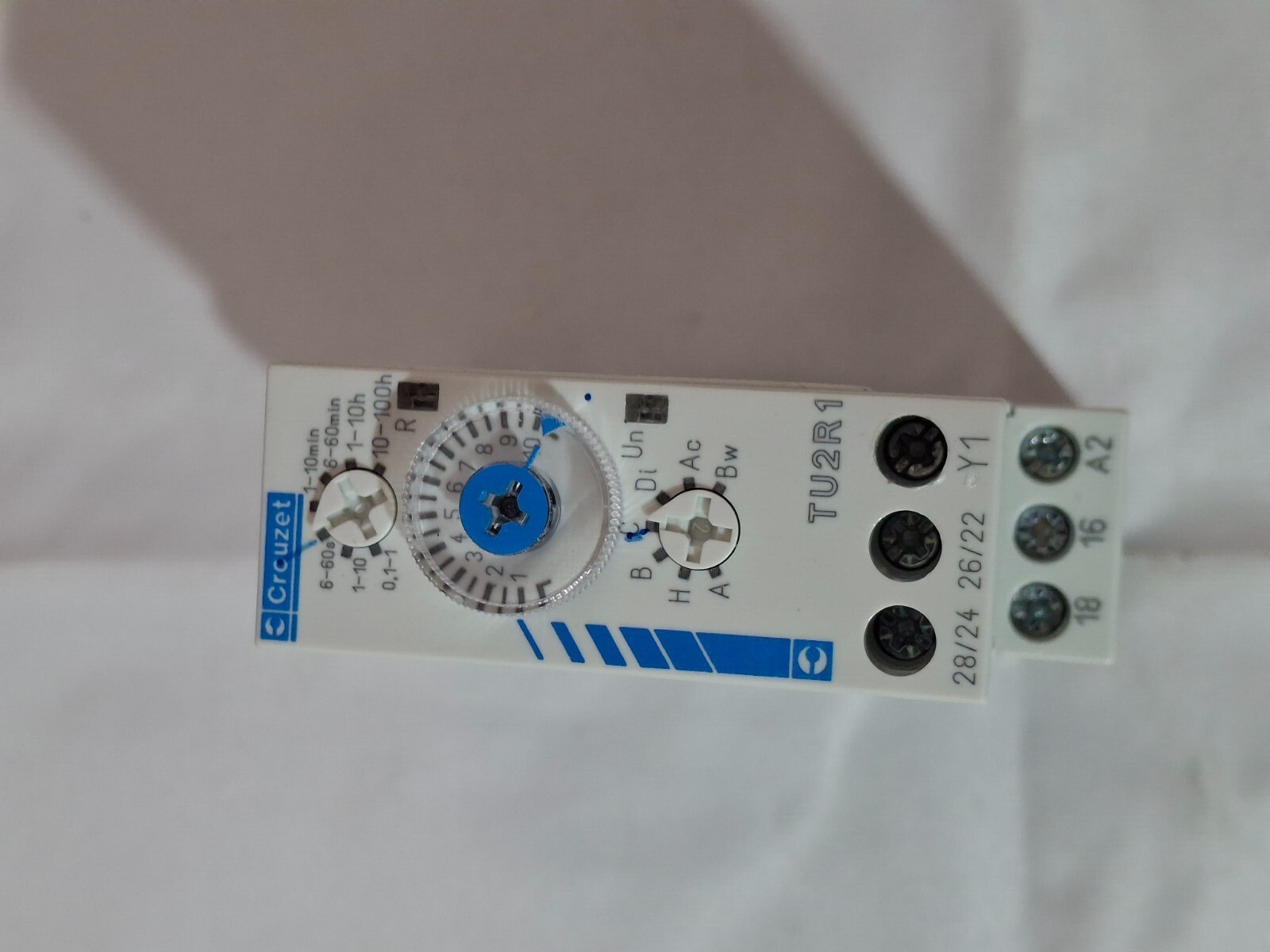

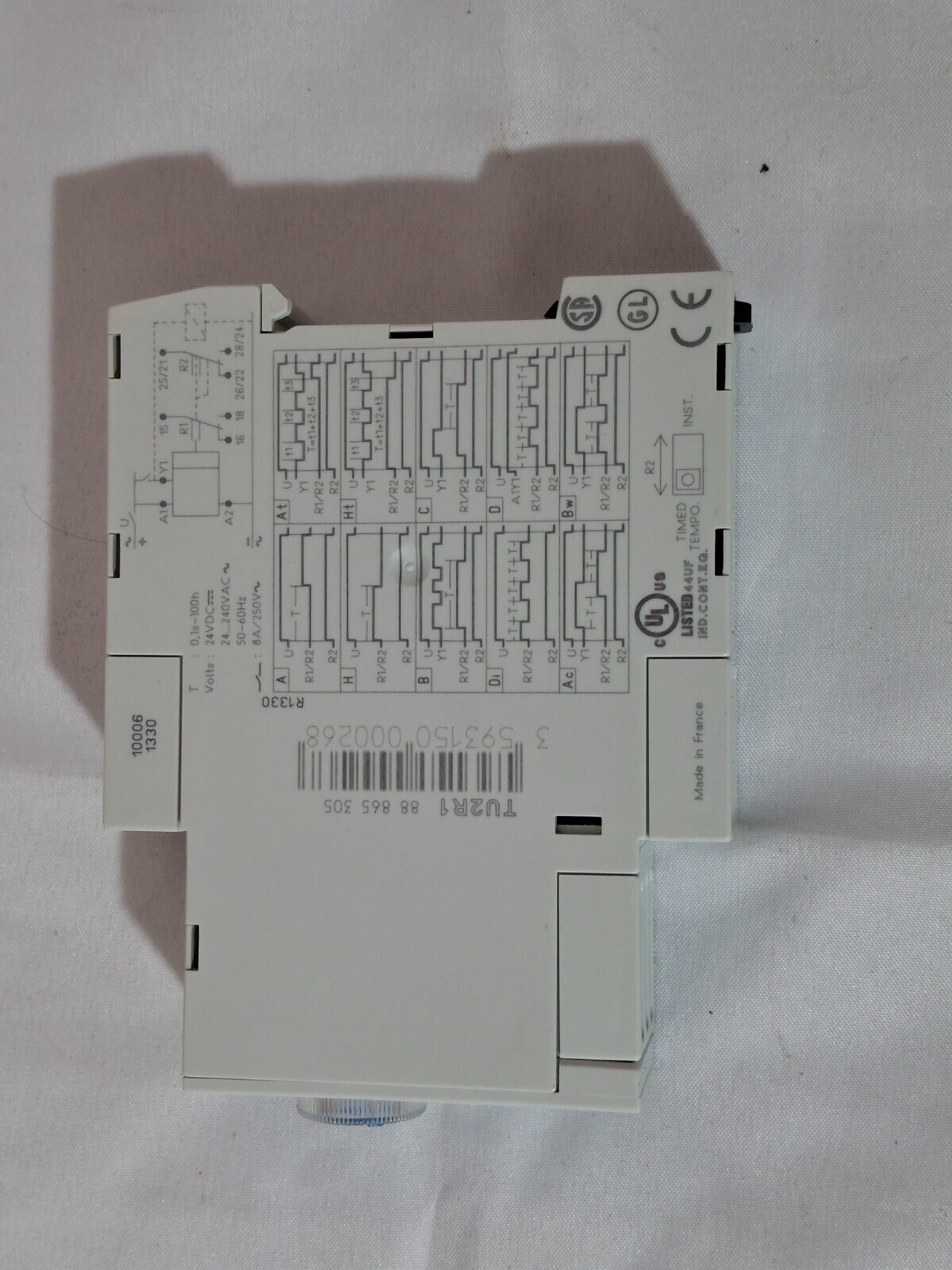

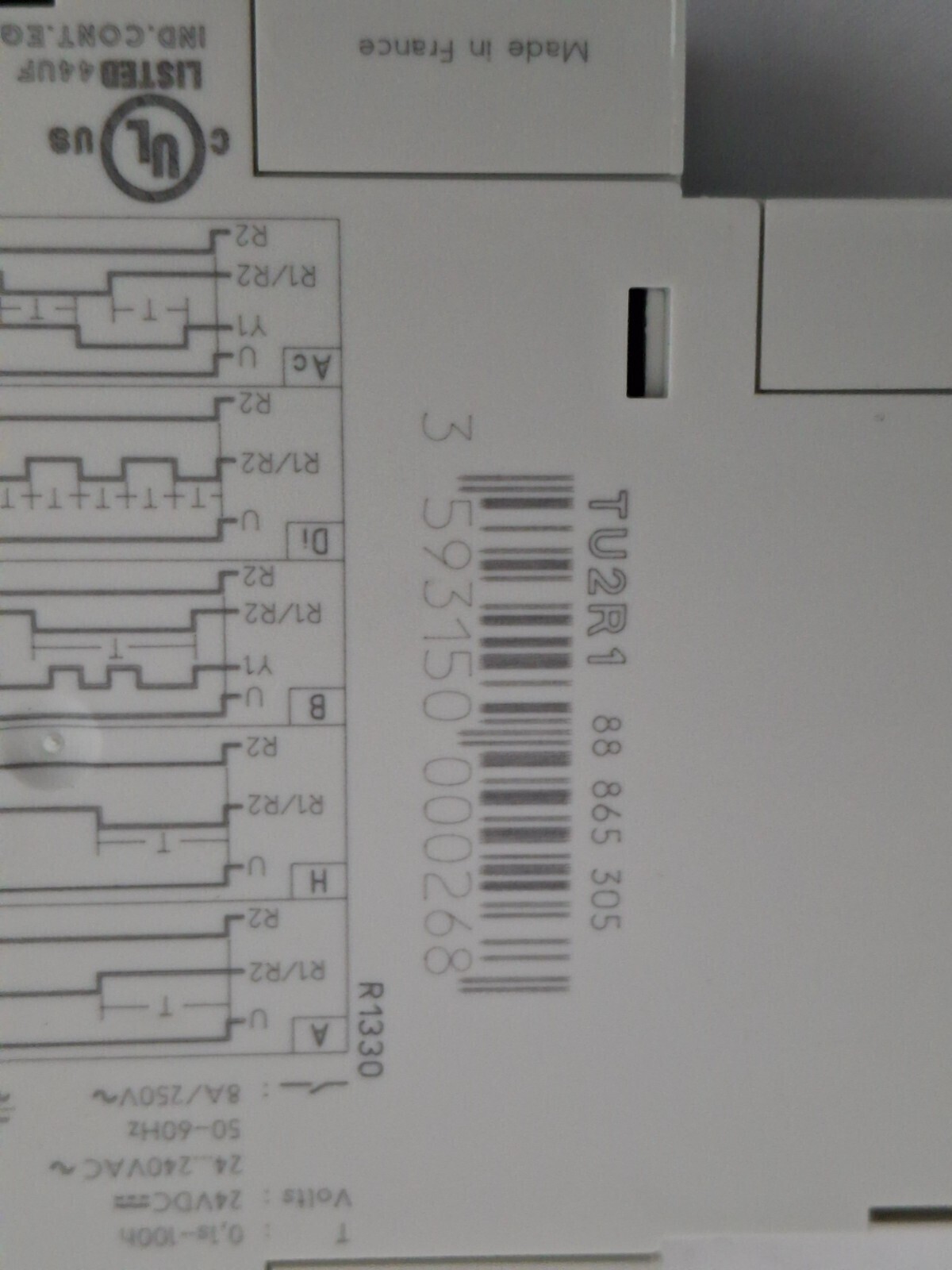

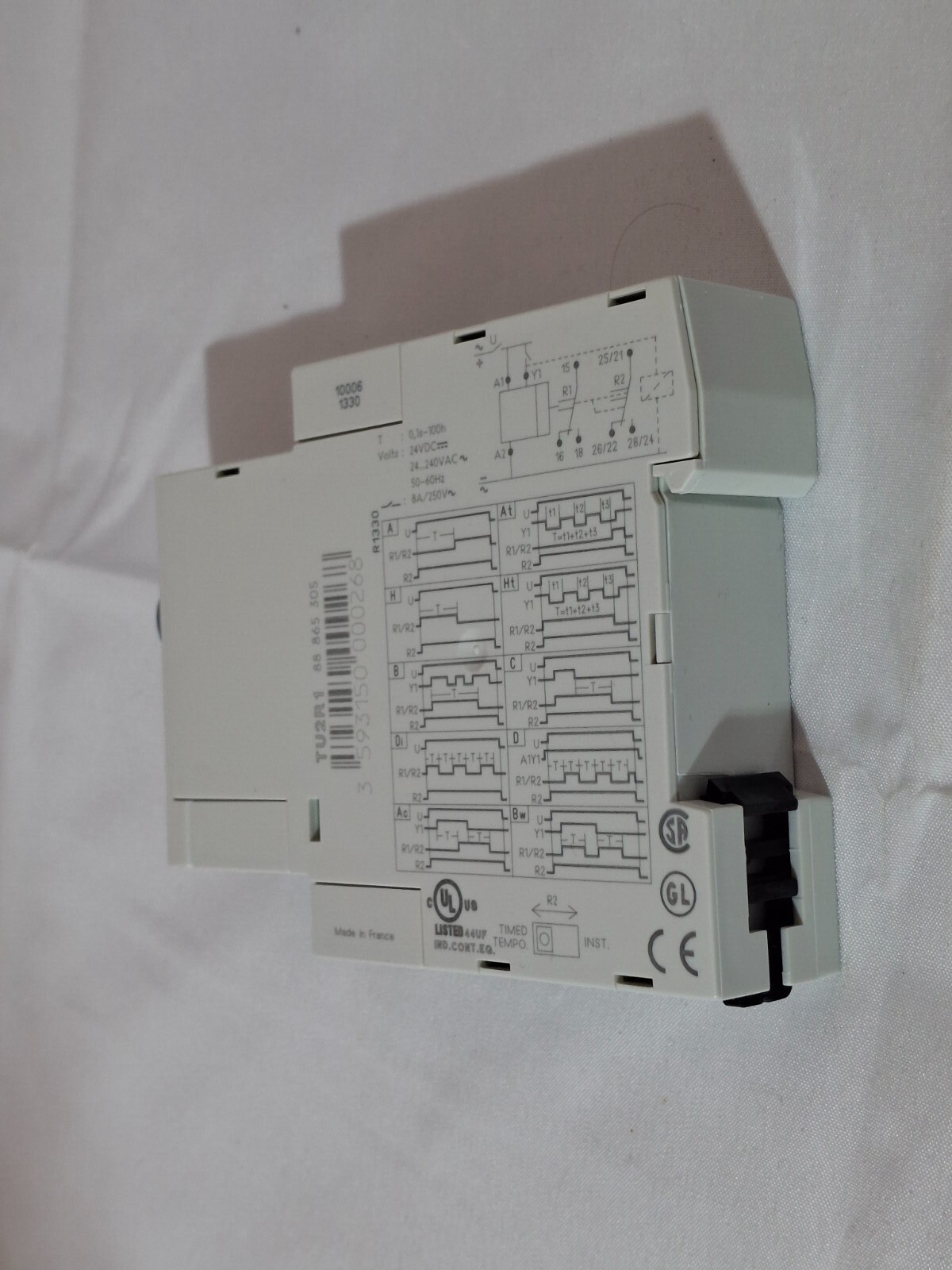

Used Crouzet Chronos 2 multifunction analog timer relay, type TU2R1, part number 88 865 305. Compact 22.5 mm DIN-rail timer with 2 timed changeover relay outputs rated up to 8 A at 250 V AC, 7 selectable time ranges from 0.1 s to 100 h and multiple timing functions (A, At, B, C, H, Ht, Di, D, Ac, Bw) as specified in Crouzet documentation. Wide supply range 24 V DC or 24-240 V AC makes it suitable for general industrial automation, pump and motor control, and OEM machinery panels. Unit was removed from a working installation, shows normal cosmetic signs of use, and has not been further tested by us. Please confirm TU2R1 / 88 865 305 function, wiring diagram and required time range with your application before purchase.
C109
Additional information
| OEM part number | TU2R1 |
|---|---|
| Brand | Crouzet |
| Part condition | Tested used |
| Availability | In stock |
