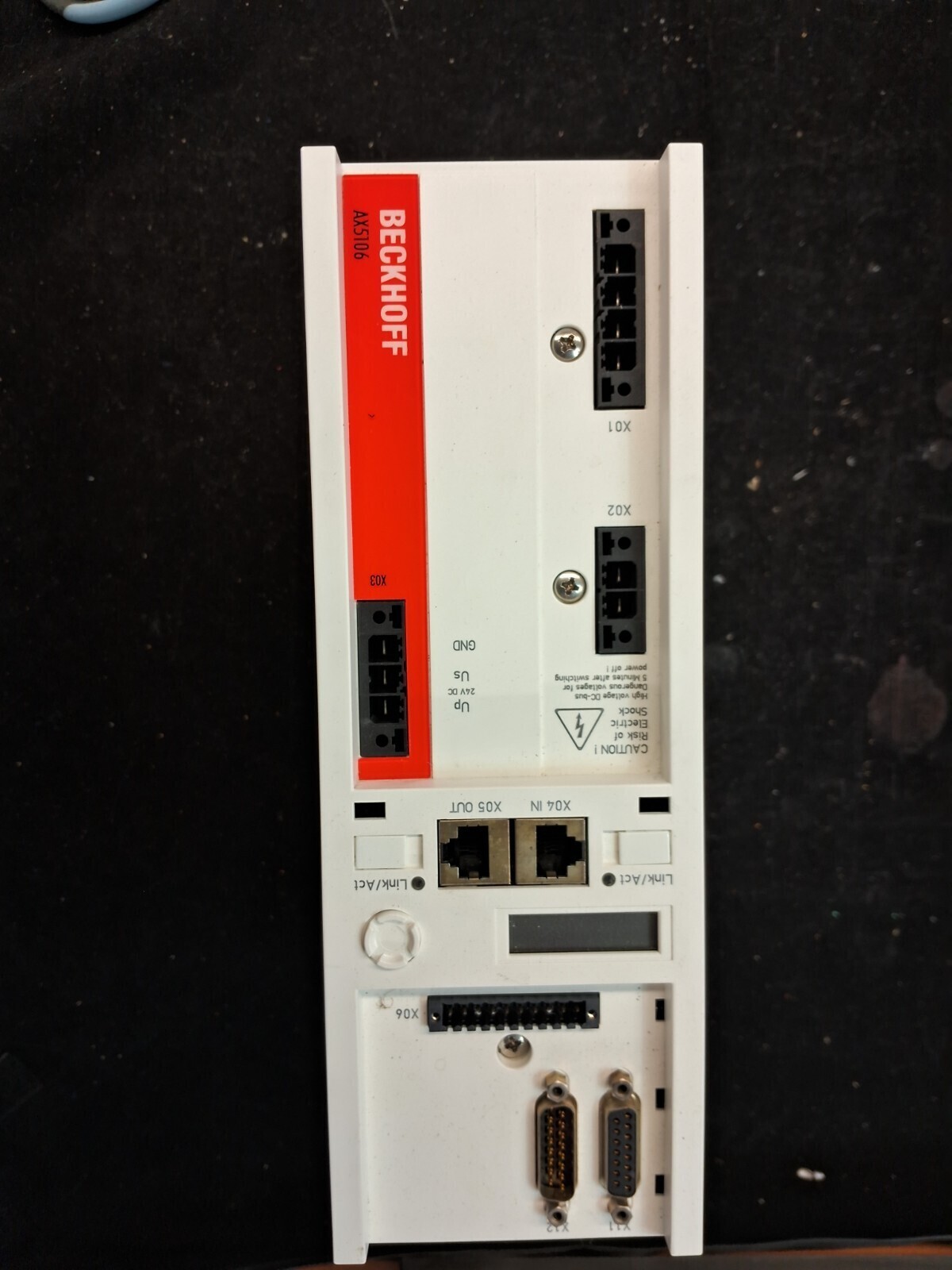

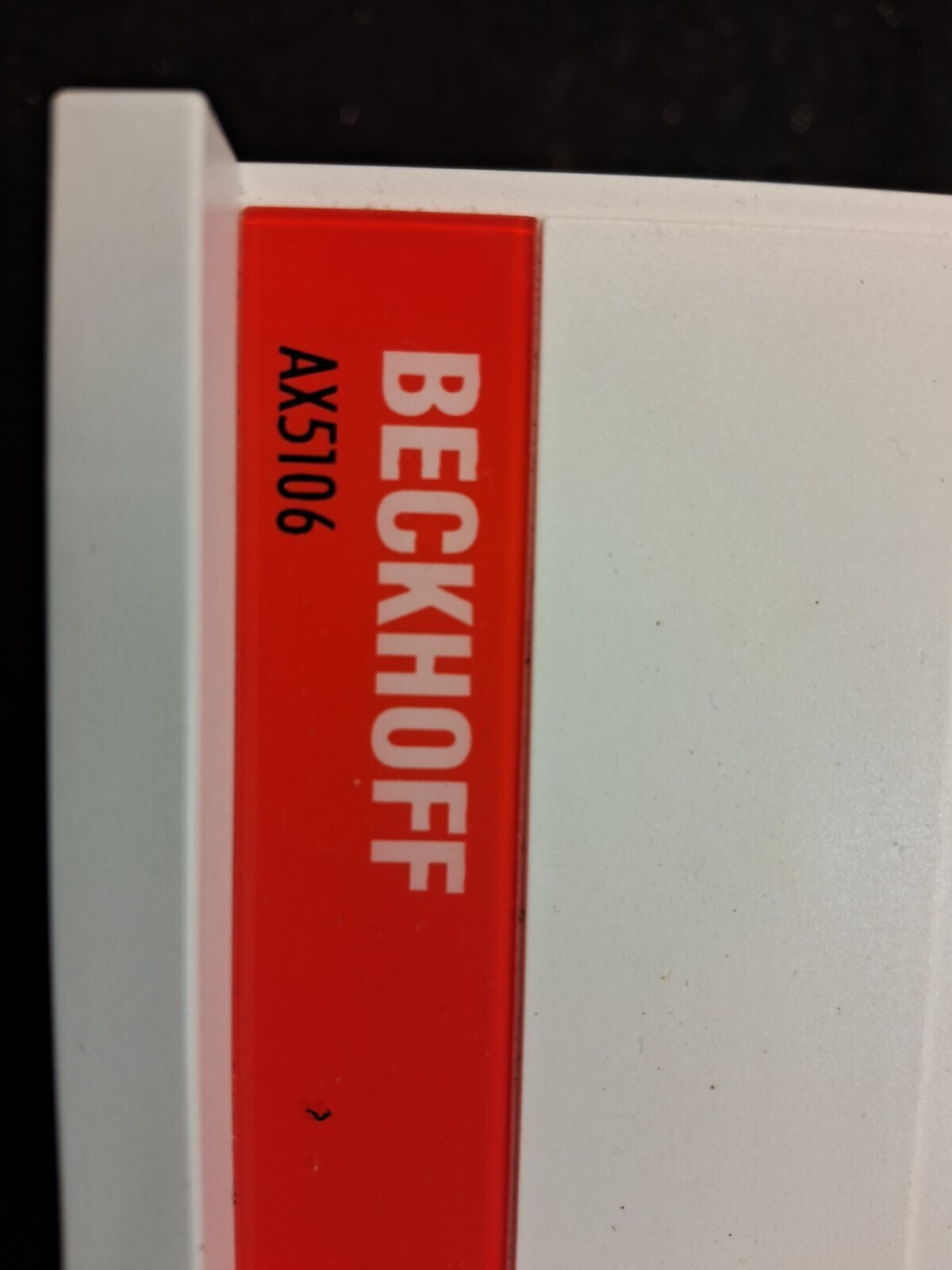

Beckhoff Automation AX5106-0000 digital compact servo drive from the AX5000 series. 1-channel servo amplifier rated for 6A output current.

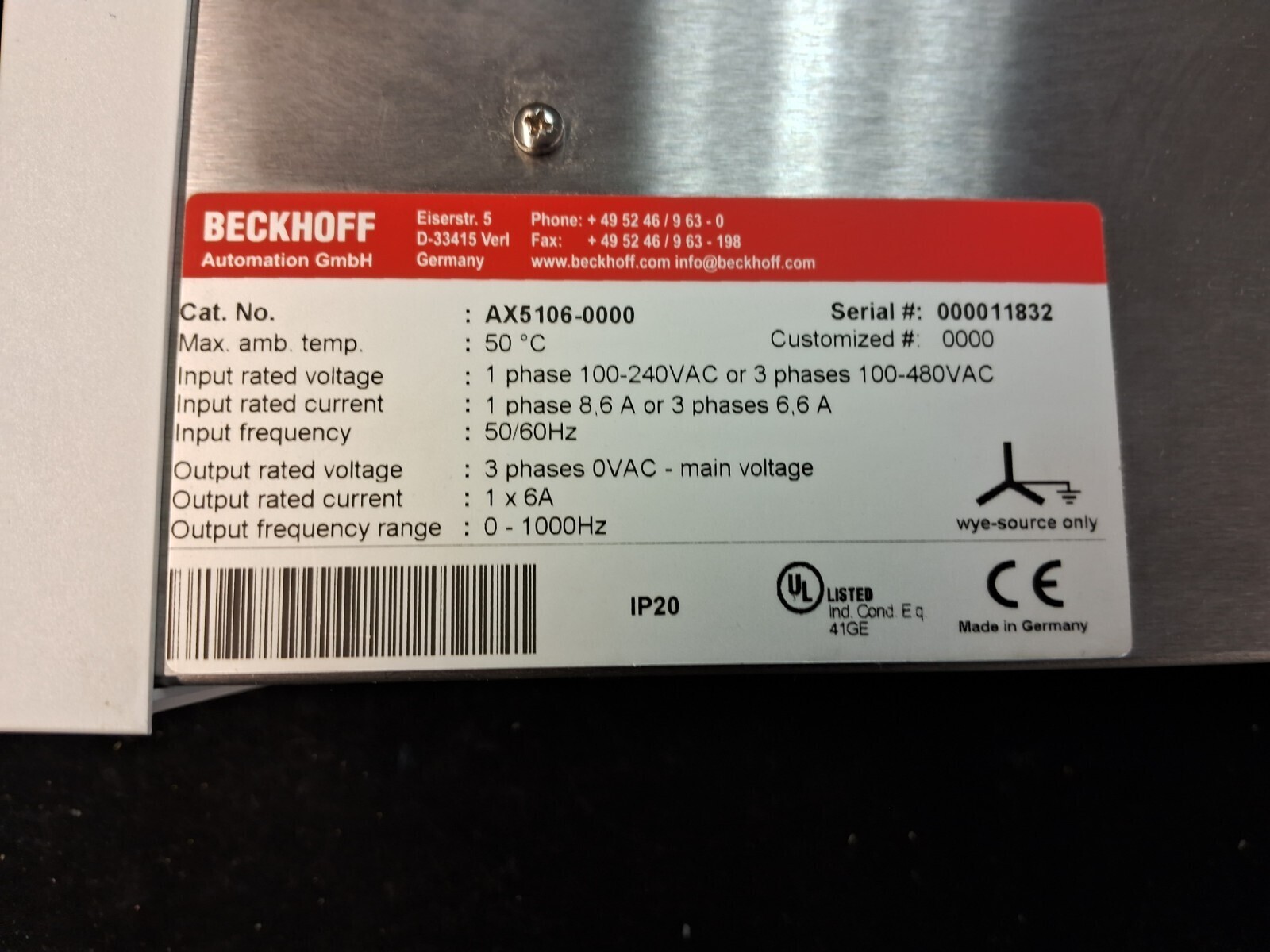

Input: 3-phase AC 100-480V, 50/60Hz rated current 8.6A (or 1-phase 100-240V 8.6A). Output frequency range: 0-1000Hz. Features EtherCAT real-time communication interface, integrated thermal protection, electronic brake resistor interface, and multi-axis synchronization capability. Forced-air ventilation cooling, compact DIN-rail mountable enclosure (92mm x 274mm x 232mm).

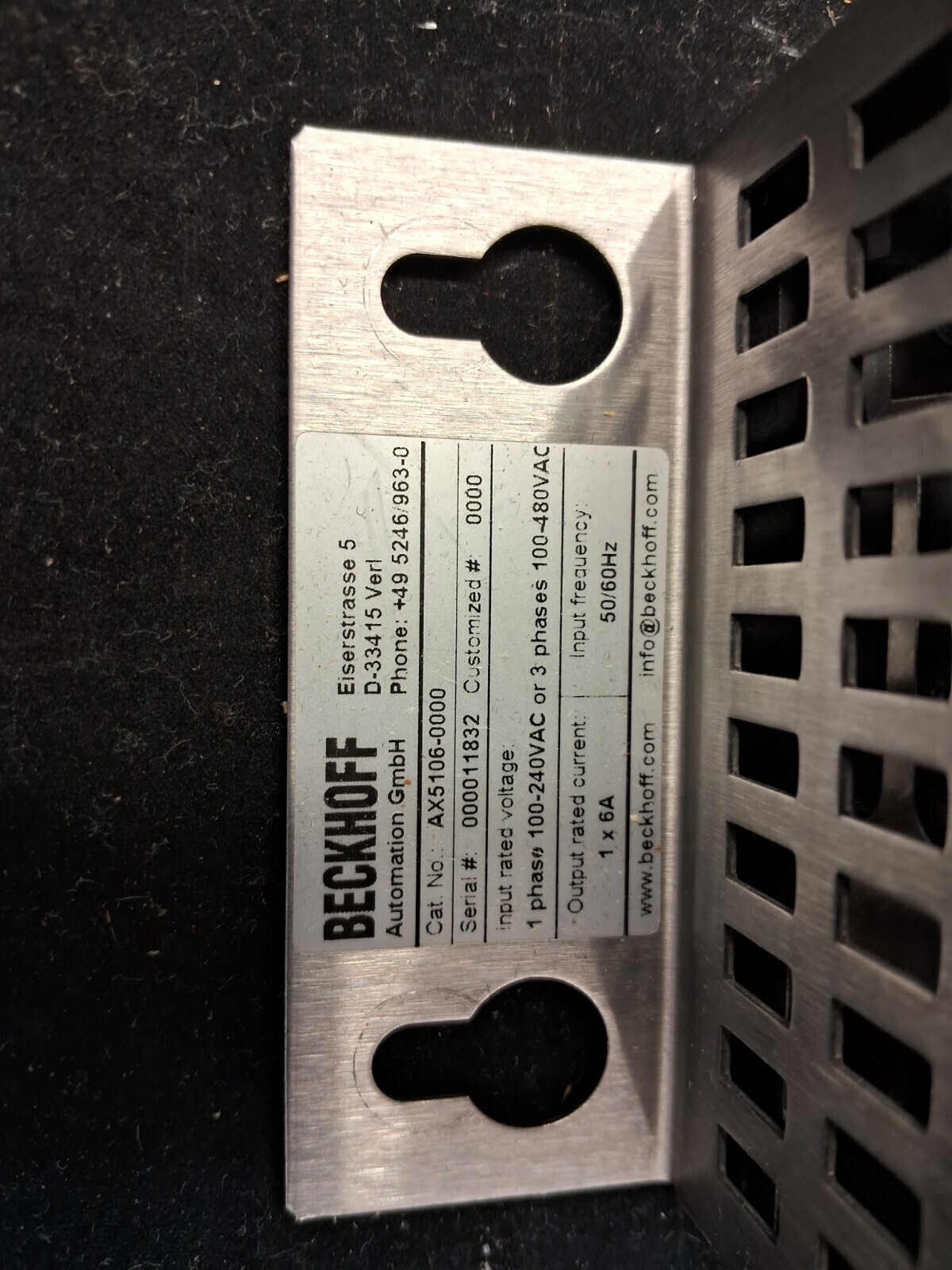

Max ambient operating temperature 50°C. Serial Number 0000011832, Customized # 0000. Suitable for CNC machinery, robotics, packaging equipment, and synchronized multi-axis industrial automation systems. Removed from operating Beckhoff automation system. No connectors or cables included.
Box 063
